Triac Dimmable Led Panel Light 18w White Aluminum Ip20 Isolated Driver

China Triac Dimmable Led Panel Light 18w White Aluminum Ip20 Isolated Driver supplier
Triac Dimmable Led Panel Light 18w White Aluminum Ip20 Isolated Driver supplier Triac Dimmable Led Panel Light 18w White Aluminum Ip20 Isolated Driver supplier Triac Dimmable Led Panel Light 18w White Aluminum Ip20 Isolated Driver supplier Triac Dimmable Led Panel Light 18w White Aluminum Ip20 Isolated Driver supplier

Large Image :  Triac Dimmable Led Panel Light 18w White Aluminum Ip20 Isolated Driver

Product Details:

Place of Origin: China(mainland)
Brand Name: ADO
Certification: ROHS CE FCC 3C
Model Number: AD-ERP-PAL-18W

Payment & Shipping Terms:

Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 pieces in one carton 39*24*38cm
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now
Detailed Product Description
LED Driver: Isolated Dimmable: Triac
Power: 18W Fixturer Material: Aluminum
Fixture Color: White IP Level: IP20



Triac Dimmable LED Slim Panel Light 18W White Aluminum IP20 Isolated Driver





1. Description:

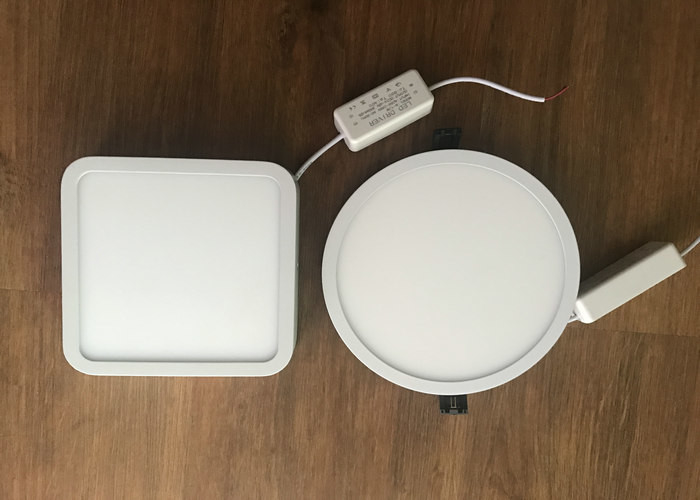

This 18W LED Slim Panel Light fixture color is white, material is aluminnum, use isolated IC constant current driver. It is IP20 non waterproof. This led slim panel light can has dimmable version, when change the normal led driver with triac dimmable led driver, it become dimmable led panel light. Our dimmable led driver quality is very good, it has many features, they are:



1. LED phase-cut dimming power supply, dimming range 0-100%
2. Suitable for trailing-cut Mosfet dimmers and leading-edge Traic SCR dimmers
3. With active PFC function 0.88 or more
4. Isolated Constant Current ±1%
5. Ultra-small size, unique compact design
6. Easy self-locking crimping cover
7. Screw locking large terminal block
8. Natural air cooling







2. Detailed Specification:



Size(D*H): 175*8mm
Cutout size: 155mm
Material: Aluminum(fixture)+PMMA(LGP)
Beam angle: 120°
Operation temperature: -20℃~+60℃
Lighting Distance: 1-4meters
Mounting height: 2-3meters
Place of Origin: China
Warranty: 2 years

Approval mark: CE RoHs

Power factor: PF≧0.9





3.Technical Data Sheet:



Voltage AC85-265V
Model AD-EPR-PAL-18W
Power 18W
CCT 3000K 4000K 6000K
CRI 80Ra
LED Chip  SMD2835
Lumen 1600LM
LED Driver IC constant current wide voltage
IP Level IP20
Material Aluminum





4. Light Guide Plate Information:



Light guide plate(LGP) brand Japan Mitsubishi
LGP thinkness 3mm
LGP technology Dot Laser
LGP light transmittance 90%
Lifespan (LM80) 30000H


5. Application Places:


Hospitals, offices, retail stores, supermarkets, schools, hotels, factories, car parks and other indoor places to use.





6. Features:



1. Many different color housing, white / black / sliver/ golden/ wood

2. Many shapes: Round / Square

3. Different types: Recessed / Surface Mounted

4. Many Sizes: 90mm / 145mm / 175mm / 225mm

5. Different Power: 6W / 12W / 18W / 22W

6. CCT: 3000K warm white, 4000K neutral white, 6000K cool white

7. Driver: dimmable and non-dimmable are optional





7. FAQ:



Q1. What is your main product line is made?

A1.Our company mainly indoor commercial lighting. Mainly produce led panel light, led downlight and strip light ect.



Q2. What are your market reach throughout the region?

A2.Our markets around the world in every corner, our customer base has, we have worked with us in every country buyers.



Q3. How about ability for research and development?

A3.We have experienced engineer team. We also collect feedback information from each customer, product improvement and new product development.



Q4: How do you keep your quality?

A4: We have professional quality check team and provide 2 years warranty for this item.



Q5:Is there cheap shipping cost to import to our country?

A5: For small order, express will be best.And for bulk order,sea ship way is best but take much time.

For urgent orders, we suggest via air to airport plus our ship partner send to your door.
