Smd3030 Energy Efficient High Bay Lighting , Pure Aluminum High Bay Led Lamps

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-UFO-100W
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: 1PCS/CTN 38*38*22.5CM 3.5KG
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Power: 100W Input Voltage: AC90-305V
LED Chip: SMD3030 Working Frequency:: 50-60HZ
Material: Pure Aluminum CCT: 2700-6500K
Lumen: 130LM / W Size: F320*145mm
High Light:

energy efficient high bay lighting


led high bay lamp

Product Description

100W LED Highbay Light Osram SMD3030 LED Chips Meanwell Driver 5 Years Warranty
1. Specification:

Input Power:100W PF≥0.95
Input voltage: AC90-305V CRI≥80Ra
working frequency: 50-60HZ Beam Angle: 60,90,120 degree
LED Spec: Lumileds3030 (119pcs) Housing material: Pure Aluminium
CCT: 2700-6500K LED working life: 30000-50000H
Lumens: 12500lm IP Rate: IP65

2. Feature:
1) Used Osram led chips,high power,excellent brightness and low light decay.
2) Adopt Meanwell HBG series(90-305V) / CE power supply(100-277V) working voltage,

small ripply, stable and safe.
3) Use aluminum heat sink housing with beautiful outlook and excellent thermal conductivity.

3.  Technical Data:
Light Source: LED
Item Type: High Bay Lights
LED Light Source: Lumileds
Warranty(Years): 5 Years
Input Voltage(V): AC110-277V
Lamp Power(W): 100W
Lamp Luminous Flux(lm): 12500
Lamp Luminous Efficiency(lm/w): 125LM/W
CRI (Ra>): 80Ra
Color Temperature(CCT): 2700K-6500K
Working Temperature(℃): -20 - 40℃
Working Lifetime(Hour): 50000Hours

Lamp Body Material: Aluminum
IP Rating: IP65
Certification: CCC, CE, EMC, LVD, RoHS, SAA, CE RoHS SAA
Place of Origin: Guangdong, China (Mainland)
Brand Name: Ado
Model Number: AD-UFO-100W
Color Temperature: Warm White/Cool White/Pure White
Power: 100W/150W/200W/240W
LED Chip: Lumiled/Osram 3030 Chip
Beam angle: 60/90/120 degree
LED Driver: Meanwell HBG
Keyword: UFO Industrial High Bay Lighting
Product Name: UFO LED High Bay Light

4. Advantages:
1. Lumileds/Osram 3030, Ra>80, 50000 hours, Chip for options, LM80 standard, high luminous efficiency, long life, cost-effective.
2. The Power Supply: Meanwell HBG series, Inventronics, Sosen driver for option, 5 years warranty, cost-effective, UL SAA, and other related certificates.
3. Lens Angles: The PC fireproof material lens with 60°, 90°, 120°beams, will not turn yellow in 5 years
4. The Shell: Integral stamping 1070 pure aluminum sheet metal housing is with light weight. Powder painting against harsh environments, and do not change color.

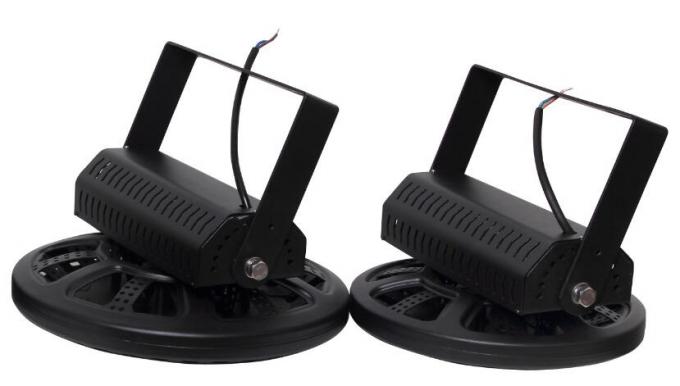

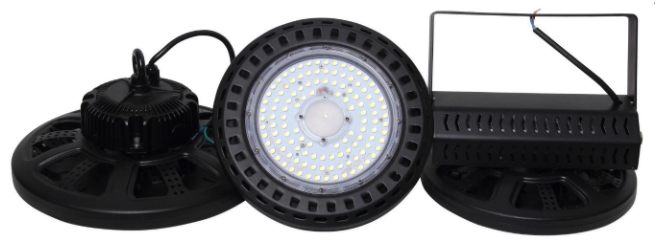

Smd3030 Energy Efficient High Bay Lighting , Pure Aluminum High Bay Led Lamps  0
Smd3030 Energy Efficient High Bay Lighting , Pure Aluminum High Bay Led Lamps  1
Smd3030 Energy Efficient High Bay Lighting , Pure Aluminum High Bay Led Lamps  2
5. Wide - range in Application:
Can be installed at Warehouse, Skating rink, Stadiums, Building, Factory and Mall etc.
6. What we can do for you?
~ OEM/ODM/OBM services
Customize services are available when needed.

~ Best customs service
action of dealing with problems in 48 hours.

~ Professional team services
More than 8 years experience R&D and sales engineers would offer best lighting solution for projects.

~ Oversea customs service
Seattle, USA / Vancouver, Canada. For quickly dealing the problem or repair/replace product.

7. RFQ:
Q1. Are you a manufacturer or a trading company?
A1. We are a factory in Guangzhou, with OEM&ODM&Customization available.
Q2. Do you have the ability to do independent research and development?
A2. Five people in the engineering department support our company to do independent research. And willlaunch new products on a regular basis.
Q3. Can you give us a favorable discount ?
A3. Of course, a favorable discount will be offered if the quantity is sizable.
Q4. Are your products conforming to our standards?
A4. Yes, our products pass the testings as you require,e.g.:CE, RoHS,etc.
Q5. How do you control the quality ?
A5. We control the product quality by IQC,three tests on production lines,and 100% aging testing before packaging.
Q7. If I have a question I would like advice on how to contact you?
A7. You can sns platform or directly through major inquiry and send e-mail to consult us. And we will reply you in detail within 24 hours.
