Ip66 Waterproof Led Flood Lights 6500k 2000lm Excellent Heat Dissipation

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: TUV CB CE FCC SAA RoHS
Model Number: AD-XTGD-020A
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: Negotiation
Packaging Details: 60*33.5*21.5 cm 20 pcs
Delivery Time: 3-5 days for samples, 7-15 days for mass order
Payment Terms: L/C, TT, Western Union, MoneyGram, Paypal
Supply Ability: 10000 pcs / day
Contact Now

Detail Information

Model: AD-XTGD-020A Power: 20 W
Voltage: AC85-277V 50 / 60Hz CCT: 2700K - 6500K
LED Diver: Waterproof IP Level: IP66
High Light:

outdoor led flood lights

,

led flood lamps

Product Description

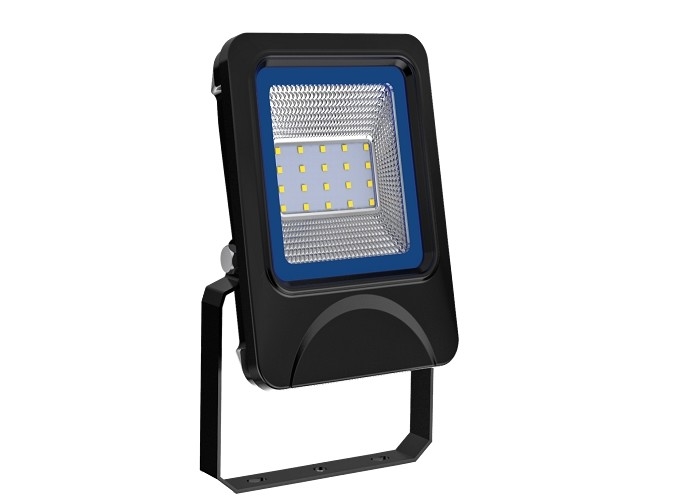

20 Watt LED Waterproof Flood Light IP66 6500K 2000LM New Item 3 Years Warranty Aluminum





1. Description:



Our Waterproof LED Flood Light IP rank is IP66, the fixture material is die casting aluminum, heavy housing, thick radiator, good heat dissipation. The led chip is Osram led chip SMD3030, one chip is one watt, led chip lumen is 110-130LM per watt. High luminours efficiency with low decay. The led driver is waterproof wide voltage IC constant current project, which can pass CE / SAA / TUV.





2. Specification:



Input voltage: AC85-265V
Model: AD-XTGD-020A
Power: 20W

LED Quantity: 20pcs

LED Chip: Osram SMD3030

Lumen: 2000LM

CCT: 3000K / 4000K / 6500K

CRI: 80RA

Beam Angle: 120°

Power factor: ≥55%
Shell material: aluminum + tempered glass
LED Driver: CE / TUV / SAA driver
Shell color: black
IP rating: IP66
Size: 175*135*44mm
Warranty: 3 years
Place of Origin: China
Certificate: CE RoHs





3. Advantages:



1. Slim design, excellent heat dissipation

2. Die-casting aluminum housing with heat radiator

3. IP66 IP grade

4. 3 years warranty

5. Long life span>30,000hrs

6. New Module Design

7. All alumium structures





4. Features:



1. Start without noisy and flickery free.

2. High shock and vibration resitant.

3. No UV&IR or other harmful radiation.

4. CE EMC SAA TUV RoHS

5. Die-casting aluminum casting+toughened glass+waterproof rubber gasket





5. Application:



Waterproof LED Flood Light could be used for outdoor lighting, it is used very widely, football field, large-area work sites and mines, building outlines, stadiums, overpasses, monuments, parks, and flower beds.





6. More Options for Choose:



Model Item Power Lumen Size CRI LED Quantity
AD-AD-XTGD-010A 10W 1000LM 129*99*44mm 80Ra 10pcs
AD-AD-XTGD-020A 20W 2000LM 175*135*44mm 80Ra 20pcs
AD-AD-XTGD-030A 30W 3000LM 215*175*47mm 80Ra 30pcs
AD-AD-XTGD-050A 50W 5000LM 275*225*48mm 80Ra 40-pcs





7. 20W led flood light Packing:



Product Size: 175*135*44mm
Product Weight: 0.9kg
Packing Size: 60*33.5*21.5cm
Packing Quantity: 20pcs
Packing Weight: 19kg



8. FAQ:



Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 1000pcs.



Q3. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.





Q5: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution

including re-call according to real situation.
