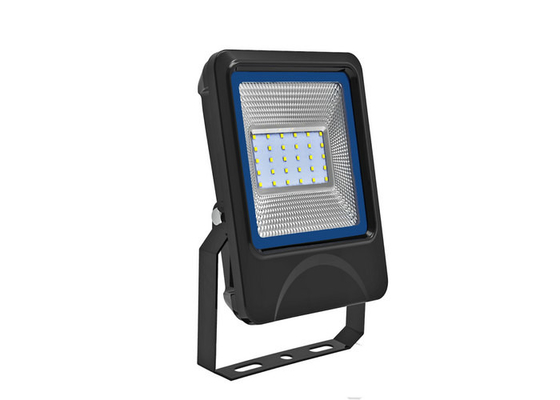

Smd Type Led Flood Light Outdoor Security Lighting Slim Fixture 30w 4000k

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: TUV CB CE FCC SAA RoHS
Model Number: AD-XTGD-030A
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 62*33*25cm 15pcs/CTN
Delivery Time: 3-5 days for samples, 7-15 days for mass order
Payment Terms: L/C, TT, Western Union, MoneyGram, Paypal
Supply Ability: 10000 pcs / day
Contact Now

Detail Information

Model: AD-XTGD-030A Power: 30 W
Housing: Aluminum LED Chip: Osram
IP Level: IP66 CRI: 80Ra
High Light:

outdoor led flood lights


led flood lamps

Product Description


LED Waterproof Flood Light 30w 4000K 3000LM Grey Housing Slim Fixture SMD Type IP66



1. Description:


LED flood light adopts 3030 light source, energy saving and environmental protection, high brightness and long service life; adopts ADC12 aluminum material for die-casting molding, the surface is treated with special heat conduction, and the heat generated by the lamp panel and power supply can be quickly exported to reduce the temperature difference. Reduce the junction temperature of the light source, ensure that the light source light fades 3%, lifespan 50000 hours; use constant current power supply, high efficiency, low heat, high precision constant current; unique structure, high efficiency, energy saving, green and environmental protection.



2. Specification:

Model: AD-XTGD-030A
Power: 30W

LED Quantity: 30pcs

LED Chip: Osram SMD3030

Lumen: 3000LM

CCT: 3000K / 4000K / 6500K


Beam Angle: 120°

Power factor: ≥55%
Shell material: aluminum + tempered glass
LED Driver: CE / TUV / SAA driver
Shell color: black
IP rating: IP66
Size: 175*135*44mm
Warranty: 3 years
Place of Origin: China
Certificate: CE RoHs



3. Advantages:


A, using high-quality LED as a light source, energy saving and environmental protection, compared to traditional light sources, saving more than 60%.
B, light uniform and soft, and high brightness. The color rendering is good, the appearance of the physical color is more accurate, and various light colors are available, which can meet the needs of different environments.
C, the use of high efficiency constant current driver, wide voltage input, can work in the voltage instability of the place.
D, lightning strike, the lamp body is made of aluminum alloy material, high strength, corrosion resistance and good weather resistance, good heat dissipation.



4. Technical Data Sheet:


Input Voltage: AC100-277V
Power: 30W
Working Frequency: 50~60Hz
Power factor: >0.9
LED Quantity: 30 pcs
LED Type: 3030
Luminous Efficiency: 120LM/W(±5%)
CCT: 2700~6500K
CRI: >80
Working temperature: -30~+45℃
IP Level: IP66
Life Expectancy: 50000Hr


Input Voltage:




Dimension: 215*175*47mm
Certificates: TUV / CE / SAA / FCC / RoHS
Net Weight /Gross Weight: 1.30 kg / 19.5 kg
Packing Size: 62*33*25cm 15pcs/CTN



5. Application:


A. Green Landscape Lighting
B. Billboard lighting
C. Historic building exterior lighting
D. Tunnel lighting
E. Light transmission outside the building
F. Stadium lighting



6. Installation instructions:


1. Non-professional technicians, please do not repair or modify this product without permission.
2. Please turn off the power before installation to avoid improper operation and electric shock.
3. Before installation, please check whether the voltage marked on the mast lamp is the same as the input voltage to be connected, so as not to damage the LED lamp.
4. In order to ensure the service life of the product, please do not use it in places with strong acid mist.
5. Pay attention to shockproof during installation and transportation.
6.Before installation, ensure that the installation location can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, and no fire hazard;
7. If the lamp fails, please place the lamp in a place and send it back to our company for testing and repair.
8. If you find that the lamp wire is broken, stop using it immediately.


Smd Type Led Flood Light Outdoor Security Lighting Slim Fixture 30w 4000k 0Smd Type Led Flood Light Outdoor Security Lighting Slim Fixture 30w 4000k 1


Smd Type Led Flood Light Outdoor Security Lighting Slim Fixture 30w 4000k 2


Smd Type Led Flood Light Outdoor Security Lighting Slim Fixture 30w 4000k 3
