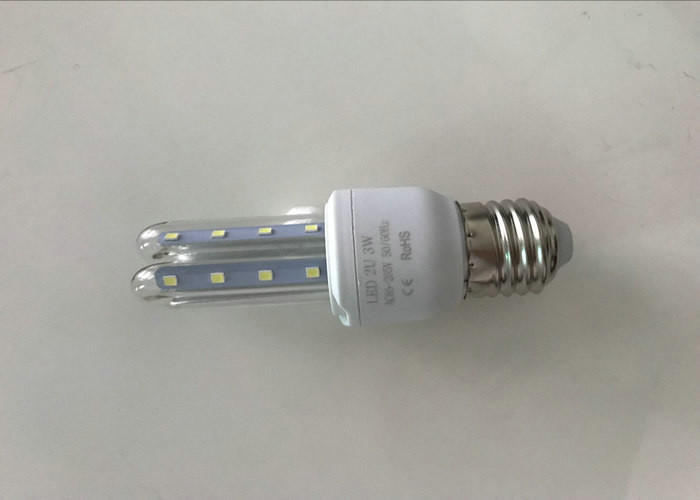

U Shape Led Corn Light E27 5w Clear Glass 400lm With 2 Years Warranty

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-3U-5W
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: 100pcs 42*21*24cm
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Lumen: 400LM Power: 5W
Shape: 3U Type Base: E27
Material: Glass+PBT Cover: Clear
High Light:

led corn lamp


led corn light bulb

Product Description


LED Corn Light U Shape 5W E27 Clear Glass 360 Degree 400LM 2 Years Warranty



1. Specification:


Materials Glass + Plastic + Fireproof material
Power 3W / 5W / 7W / 9W / 12W / 16W / 20W /24W / 30W
Input Voltage 85-265V with constant current driver
CRI 80Ra
Driver Isolated IC constant current wide voltage
LED Type SMD 2835
Lamp Life 30000h-50000h
Lumen 80LM Per Wattage
Beam Angle 360 degree
Color Temp 2700K / 3000K /3500K / 4000K / 5000K / 6000K /6500K
IP Rate IP20
Certification CE RoHS 3C EMC LVD
Warranty 3-5 years



2. Advantages:


1. Use Epistar led SMD3014/SMD2835 as the light source, the light lumen efficiency is more than 100LM/W, it is very bright.

2. The most important part is the LED driver, it is isolated IC constant current, very smart and stable, with the protection of over load/over voltage/short circuit

3. PBT flame resistant material, to eliminate the unnessary security risks

4. High transmittance glass lamp, high light efficiency, good color rendering

5. 360° light beam angle, no dark area

6. Easy to install with E27 base

7. No UV or IR radiation, Conductive to eye protection.

8. It's major to replace the CFL with screwed lamp base directly



3. Description:


LED Corn Light looks like corn, there are many led chips around the aluminum plate. so it called cron light.

The shape is U style, also we call it u shaped corn light, or energy saving led corn light. The housing is glass, also the glass could be clear, milky and forsted. The base normally is E27, G24 and B22 could be customized. Installation is very easy. It's beam angle is very large, it is 360 degree, which can bring more lighting. The led driver is IC constant current wide voltage, it is safety, very stable. It is siutable for the world's volatge. As a light source, it can be used very widely.



4. LED Corn Light 5W Specification:


Model: AD-3U-5W

Power: 5W

Voltage: AC85-265V

Size: φ52*H135mm

Lumen: 400LM

LED Chip Brand: Epistar

LED Type: SMD2835

LED Quantity: 24pcs

CRI: 80Ra

Beam Angle: 360°

Warranty: 2 years



5. Features:


1. Wide Voltage: AC85-265V

2. Power: 3w, 5w, 7w, 9w, 12w, 16w, 20w, 24w, 30w

3. CCT: 3000K warm white, 4000K neutral white, 5000K pure white, 6000K cool white

4. Base: E27, B22

5. Glass Color: Clear, Milky, Frosted

6. CRI: 80Ra, 90Ra



6. Our Services:

1. Fast reaction: Your inquiry related to our products or prices will be replied in 24 hours
2. Professional Team: Well trained and experience staffs will answer your enquiry with professional knowledge.
3. Standard: We produce and test our lamps according to the international standards, and our products get CE RoHS SAA TUV UL etc certificated.
4. Business Scope: OEM&ODM service are available
5. Exclusive Wanted: Exclusive is offered for your own customized design and some of our current models.

U Shape Led Corn Light E27 5w Clear Glass 400lm With 2 Years Warranty 0

U Shape Led Corn Light E27 5w Clear Glass 400lm With 2 Years Warranty 1
