China LED Flat Panel Light manufacturer

360 Degree 12w Led Corn Light Ac85 - 265v E27 Base Pbf Glass Material

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-3U-12W
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: 50pcs
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Voltage: AC85-265V Power: 12W
Lumen: 960LM Base: E27
Material: PBT Glass Cover: Clear
High Light:

led corn lamp

,

led corn light bulb

Product Description

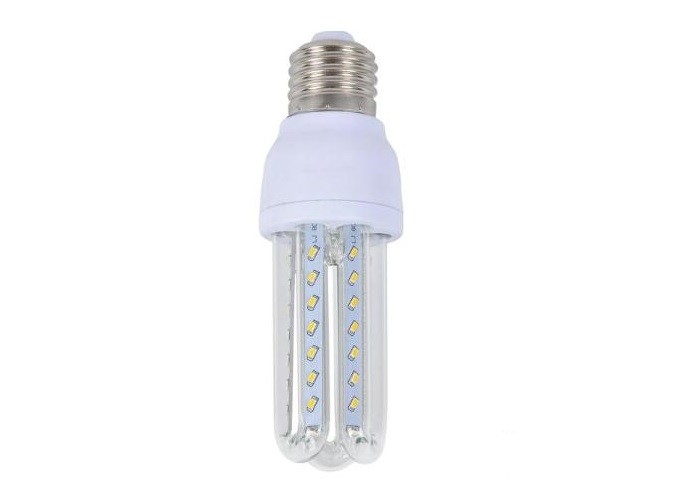

12W Energy Saving Bulb LED Corn Light AC85-265V PBF Material E27 360 Degree 960LM​​





1. LED Corn Light 12W Specification:



Model: AD-3U-12W

Power: 12W

Voltage: AC85-265V

Size: φ52*H170mm

Lumen: 1050LM

LED Chip Brand: Epistar

LED Type: SMD2835

LED Quantity: 60pcs

CRI: 80Ra

Beam Angle: 360°

Warranty: 2 years





2. Description:



LED Corn Light, also called led energy saving corn bulb. Our this lamp passed EMC,LVD and ROHS certification, quality is good with assurance. Green and health protection, no pollution, more comfortable for our vision. The Power is 3w, 5w, 7w, 9w, 12w, 16w, 20w, 23w and 30w. Base is E14 / E27 and B22. The material is glass and PBT material. Glass cover could be milky, clear and frosted. Clear cover is normal cover, milky and frosted cover need to be customized. The Voltage is AC85-265V, wide range of available operating voltage and low consumption. Warranty is 2 years. All of our products have 100% aging test before we ship out, quality is ensurance.





3. Technical Data Sheet:



Materials Glass + Plastic + Fireproof material
Model AD-3U-12W AD-3U-9W
Power 12W 9W
Input Voltage 85-265V with IC constant current driver
CRI 80Ra
LED Type SMD 2835
LED Quantity 60pcs 48pcs
Lumen 1050LM 800LM
Size φ52*H170mm φ52*H170mm
Beam Angle 360 degree
Color Temp 3000K 4000K 6500K
IP Rate IP20
Certification CE RoHS 3C EMC LVD
Warranty 2 years





4. Advantages:



1. High temp-resistant engineering fireproof materials adopted.

2. Epistar SMD2835 led chip, 0.2W/pcs, 100Lm/W, high lumen, high CRI, low decay

3. IC consant current isolated wide voltage led driver, smart and stable quality

4. High transmittance from the glass cover

5. Alumium PCB make better heat dissipation

6. Wide beam angle of 360 lightinng degree





5. Warranty:



Our products warranty is 2 years, if any products defective during the warranty period due to the quality problems, we will replace new good for you, and you don't need to ship back the ddefective products to us, just need to send some pictures and video of the defective products, our engineers will analyze carefully to find out the defective reasons.





6. Application:



A. Showroom / Meeting rooms
B. Factories & Offices
C. Living Room & Dining Room
D. Supermarket & Hotel
F. Shop & Library





7. Quality Control:



1. Our raw materials are purchased from qualified suppliers.

2. All the material are CE ROhS approved, this can ensure the good quality.

3. We have a strong quality control team to guarantee our quality according to AQL standard.

4. The quality control system: IQC→PQC→FQC→OQC.

5. Every process will be checked strictly.

6. Defective material or products will be returned.
