China LED Flat Panel Light manufacturer

Clear Cover Led Ceiling Tube Lights , 1200mm Led Replacement Tubes AC120V

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-T8-1500-24W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 5,000 pcs per day
Contact Now

Detail Information

Power: 18W Cover: Clear
Voltage: AC120V Length: 1200mm
Material: Aluminum PC LED Chip: Epistar SMD2835
High Light:

led ceiling tube lights


led replacement tubes

Product Description

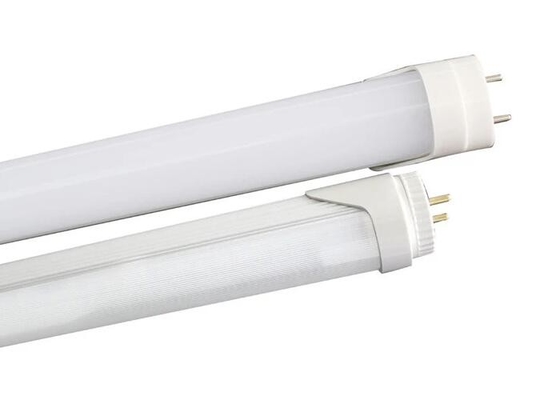

LED Tube Light T8 1200mm 18W Epistar SMD2835 Aluminum PC AC120V Clear Cover



1. Description:


Among the most important properties of LED tubes is the possibility of light direction – the entire luminous power of a LED tube can be directed in a narrower beam to wherever the light is required. Owing to the directivity and good luminous efficacy, LED tubes provide illuminance equal to that of other lighting technologies at lower electric power consumption.

LED tubes are typically made of durable plastic and aluminium, which means that they will not shatter.

The technical development of LED tubes has been fast throughout their entire marketing period. Luminous efficacy has reached even 150lm/w.



2. Advantages:


1. High luminous efficiency
2. High efficiency lamps
3. High power efficiency
4. Long lifespan 30000 hours
5. No mercury, no pollution
6. Wide color temperature range
7. High color rendering index
8. There is no ultraviolet radiation.
9. Non-glass products, not easy to break, impact resistance, vibration resistance.
10. Use safety



3. T8 LED Tube Technical Data Sheet:


Model number AD-T8-1200mm-18W
Power factor >0.9
Shell material Aluminum+PC
Cover color Milky / clear
Lamp Size(mm) L1200*Φ16
IP rating IP44
Life span(hour) 30000 hours
Warranty 2 years warranty
Place of Origin China Guangzhou city
LED Driver Internal IC constant current
Power 18W
Input voltage AC85-265V
LED brand Epistar
LED light source SMD2835
LED Quantity 96pcs
Luminous efficiency 100LM / W
Total Lumen 1800LM
Color temperature(K) 3000K / 4000K / 6500K
CRI(Ra) 80 RA



4. Description:


LED tubes are usually produced using a large number of low or medium-power LEDs. With the help of these, light output and heat conduction are balanced out across the entire tube length. The operating temperature of LED tubes is lower as compared to traditional lighting technologies, and a LED tube produces less heat than traditional fluorescent lamps.

5. Applications:

1. Widely used for home, hotel, clubs, shopping malls and etc:
2. Used for packing lot, office, warehouse, supermarket shelf and etc:
3. Applicable for freezer and refrigerator lighting, furniture lighting and etc;



6. Othe model item:


Model number Length Power Lumen Voltage CRI(Ra) LED Chips
AD-T8-300mm-5W 300mm 5w 500LM AC85-265V 80 Ra 24pcs
AD-T8-600mm-10W 600mm 10w 1000LM AC85-265V 80 Ra 48pcs
AD-T8-900mm-15W 900mm 15w 1500LM AC85-265V 80 Ra 72pcs
AD-T8-1200mm-18W 1200mm 18w 1800LM AC85-265V 80 Ra 96pcs
AD-T8-1500mm-24W 1500mm 24w 2100LM AC85-265V 80 Ra 120pcs



7. Classification:

According to the LED tube diameter classification: T5, T8, T10, T12
According to the classification of LED tube cover: milkly cover, clear cover, frosted cover

According to the classification of led tube material: Aluminum led tube, PC led tube, Glass led tube.
According to the classification of LED tube control functions: conventional LED tube, voice-activated LED tube, infrared control LED tube, intelligent LED tube, motion sensor led tube, Radar mircowave led tube.



Clear Cover Led Ceiling Tube Lights , 1200mm Led Replacement Tubes AC120V 0

Clear Cover Led Ceiling Tube Lights , 1200mm Led Replacement Tubes AC120V 1

Clear Cover Led Ceiling Tube Lights , 1200mm Led Replacement Tubes AC120V 2

Clear Cover Led Ceiling Tube Lights , 1200mm Led Replacement Tubes AC120V 3
