White Housing Led Spot Bulbs 5w 500lm 6000k 80ra With Good Vibration Resistance

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-SPN-5W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 100 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Power: 5W Voltage: AC220V
Material: Aluminum CRI: 80RA
Lumen: 300LM Dimmable: Yes
High Light:

energy saving light bulbs


led spotlight bulbs

Product Description

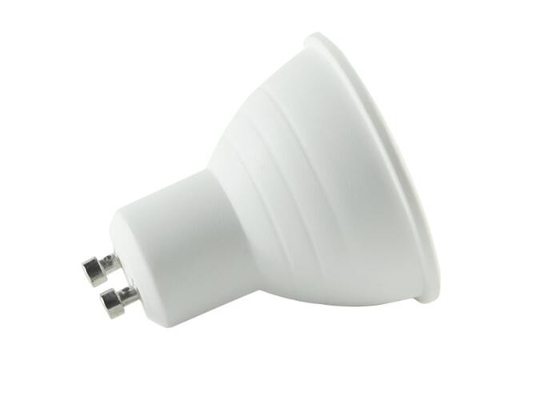

GU10 220V LED Spot Bulbs 5W 500LM 6000K Aluminum 80Ra Dimmable White Housing



1. Description:


The LED Spot Bulbs is a new lighting fixture that is composed of a led light source, a constant current driver, an optical lens, and a metal or other heat sink shell with a high thermal conductivity coefficient. Compared with the traditional halogen lamp cup, it has the characteristics of energy saving, low temperature, long life, and rich colors. Especially in the secondary illumination lens, the flashlight condenser principle and the parabolic curved surface design are mainly used to reduce the optical loss more effectively. Through the computer to establish simulated reflector light source light emitting angle and LED reflector spatial structure, track the light refraction trajectory, adjust the curvature of the reflector technical parameters, in order to achieve the best light intensity distribution and the lamp cup for various beam angle function Requirements, greatly improve the efficiency of LED reflector cup and reduce the possibility of astigmatism, glare. Reflective surface can be coated with two effects of orange peel and smooth surface, making the spot more uniform and soft, no black holes, yellow circles. Through electroplating, the reflective cup has high reflective efficiency, no delamination, and high temperature resistance.



2. Application:


Can be widely used in lighting in places such as shopping malls, homes, conference rooms, exhibitions, and advertising lighting. It can be used as a low-power outdoor lighting device and can replace 3 to 5 times other traditional lighting fixtures.
1. Star hotels, express hotels, chain hotels, hotels, etc., such as the seven-day hotel chain.
2. Shopping malls, shopping malls and other shopping venues, such as Intime Department Store
3. Stores, etc., such as the Silver Age store



3. LED Spot Light Specification:


Input Voltage: AC85-265V
Input Power: 5W
LED Type: 12pcs*SMD2835
Luminous Flux: 500LM
Color Temperature: 2700K-5000K
CRI: 80Ra (90Ra can customize)
Lifetime: 40,000-50,000hours
IP Rating: IP20
Housing Color: Sliver
Beam angle :  60° / 45° / 30°



4.  Features:

1. Aluminum housing, good heat dissapation, long lifespan

2. Epistar LED Chip, 1W one piece, 100LM/W. High brightness, low decay

3. IC constant current driver, stable quality and safety

4. DC12V, AC12V, AC85-265V, AC220V is available

5. Dimmable version is available

6. Base: MR16, GU5.3, GU10, E27.



5.  Technical Data:


Model number AD-SPN-5W
Shell material Aluminum
Lamp Size(mm) 56*50mm
IP rating IP20
Life span(hour) 30000 hours
Warranty 2 years
Place of Origin China
LED Driver IC constant current
Power 5W
Input voltage AC85-265V
LED brand Epistar
LED light source SMD2835
LED Quantity 12pcs
Total Lumen 500LM
Luminous efficiency 100LM/W
Color temperature(K) 3000-6500K
CRI(Ra) 80Ra


6. Advantages:


LED Spot Bulbs with high-brightness white LED as a cold light source, no light pollution, no harmful chemicals, no fragile glass, can be directly connected to 220V/110V AC or 12V DC voltage, can also be controlled by a built-in computer programming chip Gradient, jump and brightness changes and other effects.



7. Trade Terms:


1. Payment :L/C, T/T ,western Union, Paypal
2. Sample can be supplied
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Guangzhou, Zhongshan, Mainland China
5. Discounts are offered based on your quantities

6. 30% advance, 70% before shipping.

7. DHL, Fedex, UPS for small order
