Ac220 - 240v Led Spot Bulbs 5w Smd3030 Gu10 60 Degree Ce Emc Certificated

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-SPN03-5W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 100 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Power: 5W Voltage: AC220-240V
LED Chip: SMD3030 Material: Aluminum
Base: GU10 Beam Angle: 60 Degree
Certificate: CE EMC Warranty: 2 Years
High Light:

energy saving light bulbs


spotlight light bulbs

Product Description

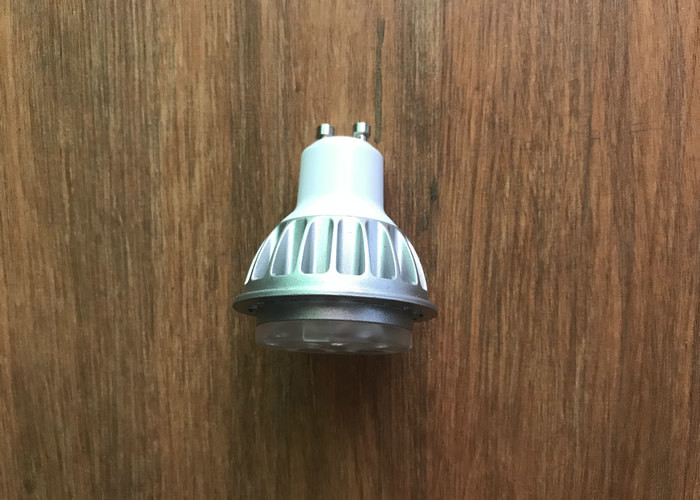

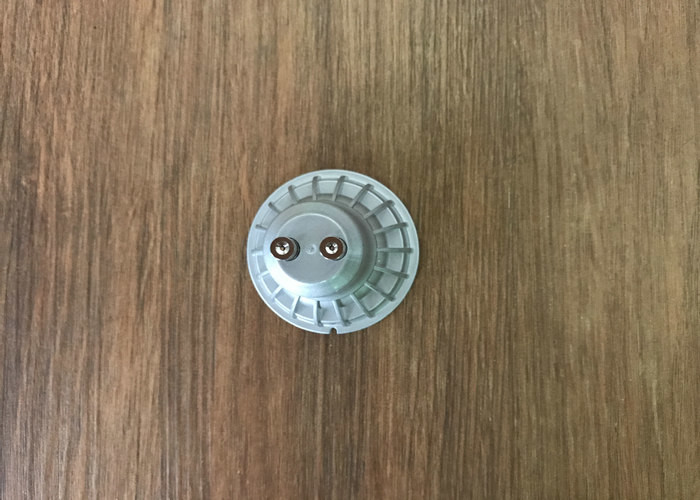

LED Spot Bulbs 5W AC220-240V Aluminum SMD3030 GU10 60 Degree CE EMC GU5.3



1. Specification:


Name: GU10 5W
VOLTAGE: 220-240V
REAL POWER: 5W ± 10%
LUMINOUS FLUX: 400 Lm ± 10%
PRODUCT SIZE:  Φ50*56 mm
CRI (RA) >80

1. Description:


This LED Spot Bulbs Voltage is AC220-240V, also can make AC85-265V for wide voltage. The Housing is die casting aluminum, and housing color is grey, also can customize black and white housing color. The power is 5W, total lumen is about 400LM, Base is GU10, GU5.3 is available. It use SMD3030 led chip, one chip power is 1w, 1w luminous efficiency is 130LM, very very high brightness with high CRI up to 80Ra, 90Ra CRI can customize. The color temperature is 3000K for warm white, 6000K for cool white, and 4000K for neutral. All of our led spot bulbs are CE, ROHS, EMC approved, quality standard can meet Europe market. And we provide 2 years warranty for our led spot light bulbs. The life span is 30000 hours.



3. Technical Data Sheet:


Model number AD-SPN03-5W Input voltage AC220-240V
Shell material Aluminum Base GU10
Lamp Size(mm) 50*53mm LED brand Epistar
IP rating IP20 LED light source 1W
Life span(hour) 30000 hours LED Quantity 5pcs
Warranty 2 years Beam Angle 60 degree
Place of Origin China LED Type SMD3030
LED Driver IC constant current Color temperature(K) 2700K 4000K 6000K
Power 5W CRI(Ra) 80Ra


3. Application:


LED Spot Bulbs are widely used for Clothing Store, Jewelry Store, Cosmetics Store, Department Store, Auto Showroom and etc.



4. Advantages:


1. High luminous efficiency uo to 100LM/W, SMD3030 led chip high brigtness, low decay..

2. High color rendering: The color rendering index is 80 or more.

3. Good heat dissipation: LED has a unique structural design, its cooling effect is very good, in addition to the ends of the heat sink, there is also a large block of heat in the middle, this design makes the product's life increased a lot.
4. Long life: The product is packaged with high-quality materials, good heat dissipation effect, product life can be more than 50,000 hours.
5. Stable quality led driver: IC constant current, AC220-240V, no short circuit, safety and smart project.

6. Special design: design is the market latest and most popular, unique and creative housing fixture,



5.  Quality Control:

All products must go through five checks before manufacturing process:
1. Raw material double check before production.
2. Double check after every individual process finished.
3. Double check after production half-done.
4. 500 times on and off testing after production finished.
5. Double check for the packing before delivery.
