Black Explosion Proof High Bay Lighting , Pir Sensor Dimmable Led High Bay

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-UFO-D-250W
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: 1PCS/CTN
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Power: 250W Dimmable: Yes
Beam Angle: 120 Degree IP Level: IP65
PFC: 0.9 Sensor: PIR
High Light:

high bay lighting led


led high bay lamp

Product Description

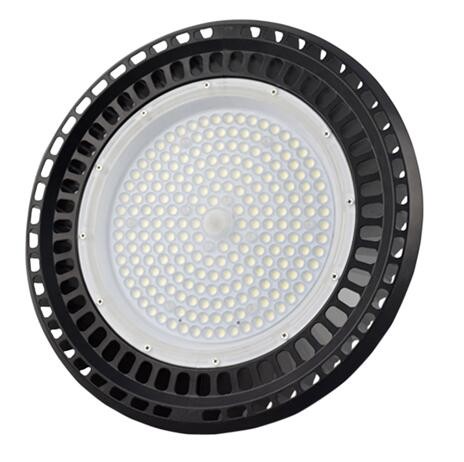

UFO LED Highbay Light 250W IP66 Dimmable PIR Sensor Black 0.9PFC IP65

1. Technical Data Sheet:


nput Power 200W 250W
Input voltage AC90-305V AC90-305V
Working frequency 50-60HZ 50-60HZ
LED Spec Osram 3030 Osram 3030
CCT 2700-6500K 2700-6500K
Lumens 26000LM 30000LM
PF ≥0.95 ≥0.95
CRI ≥80Ra ≥80Ra
Beam Angle 60, 90,120 degree 60, 90,120 degree
Housing material Pure Aluminium Pure Aluminium
LED working life 30000-50000H 30000-50000H
IP Rate IP65 IP65
Warranty 3 Years 3 Years
LED Driver IP65 Waterproof IP65 Waterproof
Size 400*156mm 400*156mm



2. Description:


LED Highbay Light adopts imported 3030 chip, energy saving and environmental protection, high brightness and long service life; 6063 aluminum shell is used, the surface is treated with special oxidation and heat treatment to increase the heat generated by the lamp plate and power supply inside the lamp and can be rapidly exported. Small temperature difference, reduce the junction temperature of the light source, ensure that the light source is 3% light fade, and the lifespan is 50,000 hours; adopt constant current power supply, high efficiency, low heat, high constant current accuracy; unique structure, high efficiency, energy saving, and environmental protection.


3. Advantages:


1. Using a number of high-power LED (3030) module as a light source, with a high thermal conductivity, low light attenuation, pure light color, indicating high, no ghosting and other characteristics;
2. Unique fin heat dissipation design, lighter weight, perfect combination of light source and heat sink, effective conduction of heat diffusion, thereby reducing the temperature of the lamp body, effectively guarantee the life of the light source and power supply;
3. No environmental pollution, no lead, mercury and other pollution elements, without any environmental pollution;
4. Good color rendering, more realistic representation of the physical color. Various light colors are available, which can meet the needs of different environments, eliminate the depression caused by the high or low color temperature of traditional lamps, make the visual comfort more comfortable, and improve the work efficiency of workers;
5. Using constant current and constant voltage control, the application of wide voltage (AC90-305V) to overcome the ballast generated by the power grid, noise pollution and caused by the light instability, to avoid the work of the eye to stimulate, fatigue;
6. Excellent decorative effect, the use of special surface treatment process, the appearance of a variety of colors can be selected, easy to install, easy removal, a wide range of applications.


4. Application:


1. Outdoor Area Lighting, High Mast Lighting.

2. Garage Lighting, Workshop Lighting.

3. Tunnel Lighting, Bridge Lighting.

4. Warehouse lighting, Factory Lighting, Industrial Lighting

5. Gas Station Lighting.



5. Quality control:

100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test it’s temperature after 24 hours lighting.Then after it is cool we again test 100% of the lamps to see if it still work well. If defective, we will check the reasons and make sure not to happen again.
