China LED Flat Panel Light manufacturer

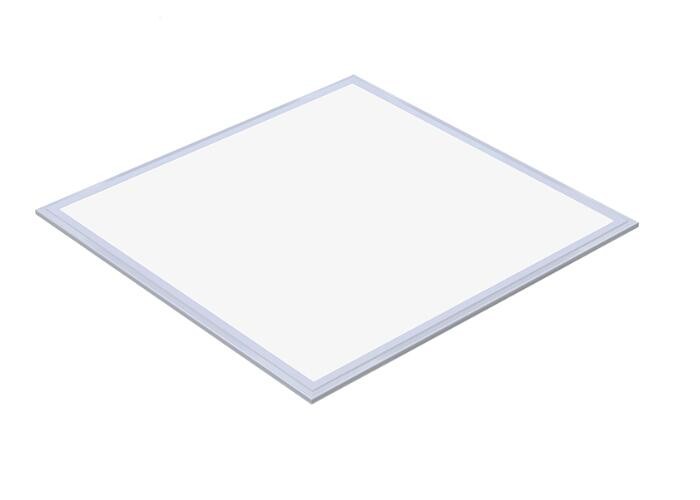

60cm 2ft 48w Led Flat Panel Light Non Flicker White Color With 0.9 Power Factor

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: CE ROHS FCC 3C
Model Number: AD-PAL66-48W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 5 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Dimension: 60cm 2FT Power: 48W
Flicker: No Driver: TUV
Power Factor: 0.9 Light Guide Plate: PMMA
High Light:

led ceiling panels

,

led flat panel

Product Description


2FT 48w LED Flat Panel Light 60cm Non Flicker White 0.9PFC TUV Driver PMMA





1. 48w & 40w & 36w Prameter:



Model AD-PAL6*6-48W AD-PAL6*6-40W AD-PAL6*6-36W
Power 48W 40W 36W
Input Voltage AC85-265V AC85-265V AC85-265V
LED Chip Brand Epistar Epistar Epistar
LED Chip Quantity SMD2835*240pcs SMD2835*200pcs SMD2835*180pcs
CCT WW NW WW WW NW WW WW NW WW
Lumen 3840LM 3200LM 2880LM
Size 600mm*600*11mm 600mm*600*11mm 600mm*600*11mm
CRI 80Ra 80Ra 80Ra
PF >0.9 >0.9 >0.9





2. Description:



Ado Flat LED Panel Light is designed for hotels, office, meeting room, home interior and classrooms. It has several features which make our products more favorable.

1. Special surface coating and sealing of the panel led ensure the lamps worked normally in the humid, high temperature and other harsh environment.

2. Compared with the incandescence lamp the energy consumption reduces 80%, it is economic.

3. With uniform light, perfect and soft lighting, make human's eyes feel comfortable

4. Environment protection, no harmful metal mercury. no radiation, strong anti-interference.

5. Normally work lifespan up to 30000 hrs, reduce expense of led bulb's replacement




3. Specification:



Model: AD-PAL6*6-48W

Size:600mm*600*11mm

Input Voltage:AC85V-265V
Watt: 48W
CCT: 2800-6500K
Beam angle:120°
Lumen: 3840Lm

Lumen effciency:80LM/W
CRI>80Ra
LED Brand: Taiwan Epistar
LED Type: SMD2835*240pcs
Material:Aluminum
Life Span:30000 hours
Warranty: 3 years
IP Grade: IP44

LGP: PMMA

Fixture color: sliver / white

Working Temperature(℃): -20 - +40

Ambient Temperature: less than 60°C

LED Driver: Waterproof wide voltage IC isolated constant current

PFC: 0.9





4. Advantages:



1. Stainless steel frame and aluminum backplate,ensure good heat dissipation.

2. Adopt hi-power chips imported from Taiwan,this light source is with small size,lower thermal resistance,fine thermal conductivity,lower heat dissipation,which is good choice for lighting fixture.

3. Lights on both sides , primary ray is very soft after diffuse light through light guide plate .
4. The appearance is small and thin, beautiful and clean, occupies less space, the workmanship is fine and also has soft light.

5. Seamlessly install, dustproof and thermal conductivity have been highly uniform.





5. How to identify the quality of Flat LED panel lights?


Compared with other lighting products, LED panel lights have outstanding advantages: ultra-thin, super-bright, ultra-energy-saving, long-life, and green. However, the quality of flat LED panel lights varies greatly. Consumers do not know how to choose?


In view of the vicious competition in the market for flat panel lamp prices, a large number of unqualified products went on the market (professionals call it (bad goods, bad goods, bad goods)) and have violated the real value of LED energy saving, long life, and environmental protection, and have violated the LED. The application of technology to the significance of the integrated ceiling area has seriously affected the healthy development of integrated ceiling LED panel lights. As a manufacturer of LED panel lights, this responsibility is to introduce and explain how to select LED panel lights or identify the quality of LED panel lights.


First, look at the overall "power factor of lighting": low power factor, indicating that the use of power supply, circuit design is not good, will greatly reduce the service life of the lamp! Power factor is low, the use of a good lamp lamp life will not be long . The power factor level can be detected with the "Power Factor Meter"! The power factor of the general export LED flat panel lamp is required to reach 0.85 or more. If the power factor is lower than 0.5, it should be said that the product is not only short-lived, but also the actual power consumption is about twice as high as the nominal value. That is to say, compared with the conventional energy-saving lamps, it does not save power at all! This is why LED panel lights need to be equipped with high-quality, high-efficiency drive power! There is no "power factor meter" to detect LED lighting power factor consumers, there is a way to use the "amperometer" to detect two Similar products with the same nominal power, the greater the current and the greater the current harmonics, indicating that the actual power consumption is large, and the less power it saves! At the same time, the current is not stable, which is detrimental to lamp life and overall lamp life!


Second, look at the "heating conditions of lighting - materials, structures": LED lighting is also very important heat, the same power factor lighting and the same quality of the lamp, if the heat conditions are not good, the lamp beads work at high temperatures, light decline will Large, lighting life will be reduced. The heat-dissipating materials used mainly include copper, aluminum and PC. The heat conductivity of copper is better than that of aluminum. The thermal conductivity of aluminum is better than that of PC. Nowadays, the heat sink material is generally made of aluminum, and the best one is aluminum insert, aluminum (aluminum), (Aluminum extrusion) followed, the worst is cast aluminum, insert aluminum best cooling effect!


Third, look at the "lamp led chip quality": lamp led chip quality is determined by the chip quality and packaging technology. The quality of the chip determines the brightness and light decay of the lamp beads. A good lamp is not only bright and bright, but also has a low light decay.



60cm 2ft 48w Led Flat Panel Light Non Flicker White Color With 0.9 Power Factor 0

60cm 2ft 48w Led Flat Panel Light Non Flicker White Color With 0.9 Power Factor 1

60cm 2ft 48w Led Flat Panel Light Non Flicker White Color With 0.9 Power Factor 2
