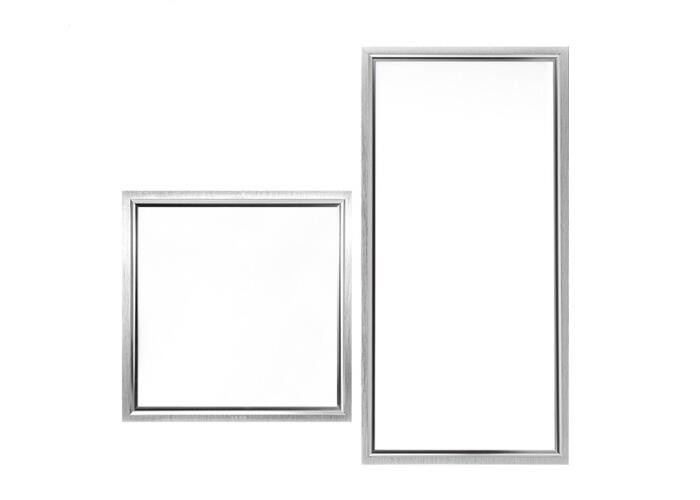

36w 600 x 600 Flat Waterproof Led Panel 2ft Ip65 Dali Dimmable For Supermarket

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: CE ROHS TUV UL SAA
Model Number: AD-PAL66-36W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 5 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

IP Level: IP65 Dimmable: Dali
LED Driver: Waterproof Certificate: SAA
Size: 600mm Power: 36W
High Light:

led ceiling panels


led flat panel

Product Description

Waterproof Flat LED Panel Light 36W 2FT IP65 Dali Dimmable SAA 4000K



1. 36W and 24W led flat panel light technical Data Sheet:


Wattage 36W 24W
Model AD-PAL66-36W AD-PAL36-24W
Voltage AC85-265V AC85-265V
Dimension 600*600mm 300*600mm
Luminous Efficiency 100lm/W 100lm/W
Lumen 3600LM 2400LM
CRI ≧80Ra ≧80Ra
PF ≥0.9 ≥0.9
LED Brand Epistar Epistar
LED SMD4014 SMD4014
Driver Isolated IC Constant Current Dimmable
Warranty 3 years
CCT 6000K
IP Ranking IP65
Material Aluminum
Beam Angle 120 degree
Installation Suspended
Dimmable Yes
Fixture color Sliver
LifeSpan 30,000 hours



2. Description:


Ado Flat led panel light installation can be suspended, recessed and surface mounted. Dimmable is available. It is Dali Dimmable version.


 And the great feature is that it can be waterproof, and it is IP65, which can use for some places are damp. It can pass CE, RoHS, TUV and SAA test.


We have several different sizes, 600*600mm, 300*300mm, 300*1200mm, 300*600mm and 600*1200mm. The height is flat led panel light is only 11mm, this slim design make our products can be installed for many places.


Voltage is wide voltage from AC85V to AC265V. LED Driver is IC onstant current with 0.9PFC, no flicker and no glare from the lighting. It is the best choise for office lighting and other commercial lighting.



3.  Advantages:


1. High quality aviation aluminum radiator, high thermal conductivity, fast cooling, perfect to solve the heat problem, to ensure LED service life

2. Light guide plate: Our led panel light use imported nano diffusion light guide plate, light guide coefficient can be as high as 90% or more, to ensure its high transmittance, pure color, no glare, no dark zone
3. Light body: Light body with high quality aviation aluminum die casting, through the anodic oxidation + surface blasting effect processing, beautiful, fashion.

4. Isolated driver: high quality, waterproff aluminum box, stable quality



4. Features:


1. Quick start, no strobe, no ultraviolet ray, green and eco-friendly LED panel light

2. Application: household, supermarket,exhibition, hotel, restaurant, back wall and other indoor lighting;

3. Round or square panel ceiling lights for choosing .it's very convenient for indoor decoration;
4. Low power consumption, saves energy more than 95% compared to incandescent lights;
5. With uniform light, perfect spot light and soft lighting,make human's eyes feel comfortable.
6. Normally work lifespan up to 50000 hrs, reduce expense of led bulb's replacement;



5. Model Specification:


Model Size Lumen Voltage LED Chip CRI
AD-PAL33-12W 300*300mm*11mm 960LM AC85-265V SMD2835 80Ra
AD-PAL33-18W 300*300mm*11mm 1080LM AC85-265V SMD2835 80Ra
AD-PAL36-18W 300*600mm*11mm 1080LM AC85-265V SMD2835 80Ra
AD-PAL36-24W 300*600mm*11mm 1920LM AC85-265V SMD2835 80Ra
AD-PAL66-36W 600*600mm*11mm 3240LM AC85-265V SMD2835 80Ra
AD-PAL66-48W 600*600mm*11mm 4320LM AC85-265V SMD2835 80Ra
AD-PAL312-48W 300*1200mm*11mm 4320LM AC85-265V SMD2835 80Ra



6. Our Services:

1. Quick answer: We will reply your questions immediatelly, If we can't answer and solve your problems at once, we will explain the current situation clearly and provide the exact date of solution.
2. Order report: Customers will be keep informed on every progress of their order’s production, knowing order's condition with time on schedule
3. Delivery notification: Offer detailed shipping date, loading date, bill number and ETA after delivery, and remind customers when the goods are going to arrive the port or destination.
4. Installation services: Professional engineers will provide and help you for the installation steps.
