China LED Flat Panel Light manufacturer

600mm Led Surface Mount Ceiling Lights 36w With 100lm / W Luminous Efficiency

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: CE ROHS FCC 3C
Model Number: AD-PAL66-36W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 5 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Installation: Surface Mounted Power: 36w
Shape: Round / Square CCT: 5000K
Size: 600mm Luminous Efficiency: 100LM/W
High Light:

led ceiling panels


flat led ceiling light

Product Description


600mm LED Flat Panel Light 36W 100LM/W 5000K Surface Mounted Round



1. Size & Power:


Model Size Lumen LED Chip
AD-PAL3*3-12W 300mm*300*8mm 1200LM SMD2835
AD-PAL3*3-18W 300mm*300*8mm 1800LM SMD2835
AD-PAL3*6-24W 300mm*600*11mm 2400LM SMD2835
AD-PAL3*6-30W 300mm*600*11mm 3000LM SMD2835
AD-PAL3*12-36W 300mm*1200*11mm 3600LM SMD2835
AD-PAL3*12-48W 300mm*1200*11mm 4800LM SMD2835
AD-PAL6*6-36W 600mm*600*11mm 3600M SMD2835
AD-PAL6*6-48W 600mm*600*11mm 4800LM SMD2835
AD-PAL6*12-72W 600mm*1200*11mm 7200LM SMD2835



2. Description:


Ado LED Flat Panel Light have many sizes, 300*300mm, 300*600mm, 300*1200mm, 600*600mm, and 600*1200mm. The power is from 12w, 24w, 36w, 48w, 60w and 72w. Also there are 3 installation, recesssed mounted, surface mounted and suspended. Color temperature could be 3000K, 4000K and 6000K, also could be customized dimmable if you need. The fixture color could be sliver and white. The fixture material is aluminum, which is high quality aviation aluminum radiator, high thermal conductivity, fast cooling, perfect to solve the heat problem, to ensure LED service life. The power factor of the panel led is more than 0.95, high luminous efficiency, good light transmission, as long as 30, 000 hours lifespan.  We use imported PMMA light guide plate, light guide coefficient can be as high as 90% or more, to ensure its high transmittance, pure color, no glare, no dark zone.



3. Application:


LED Flat Panel Light is widely used in hotels, hotels, conference halls, clubs, villas and other high-end places for lighting and decoration. Partial lighting such as exhibition halls, art halls, museums, offices, and reading rooms; factories, offices, commercial uses, residential or public facilities, schools, hospitals, and other places that require energy-saving and high color rendering index lighting.



4. Features:


A. Constant current driving power supply, the conversion efficiency is more than 95%, low power consumption, so that the light efficiency of the lamps is higher.

B. High-power transformer, perfect combination of lamps, electrical appliances and light sources

C. Streamlined design, lightweight and simple, beautiful, easy to install and replace

D. High color rendering index, the most intuitive, clearest, and adjustable color temperature

E. Dustproof, insectproof, and not easily deformed.



5. Specification:


Model: AD-PAL6*6-36W
Watt: 36W
Input Voltage:AC85V-265V
Beam angle:120°
CCT: 2800-6500K
Lumen: 2880Lm
LED Brand: Taiwan Epistar
LED Type: SMD2835*180pcs
Life Span:30000 hours
Warranty: 3 years
Lumen effciency:100LM/W
Package:netural color box

IP Grade: IP44


Fixture color: sliver / white

Working Temperature(℃): -20 - +40

Ambient Temperature: less than 60°C

LED Driver: Waterproof wide voltage IC isolated constant current

PFC: 0.9


6. Packaging:

5PCS/CTN, Carton Size: 68*26*73cm, G.W.: 18.5KG/CTN
20" Standard Container: 1300pcs
40" Standard Container: 2600pcs



7. Installation:


1.Suspended to the ceiling:

1. Mount the base on the back of the panel light

2. Use the hanging wire,through the hole in the base

3. Use the hanging wire,through the hole ing the other base

4. Fixing the base and ceiling with screws


2.Surface Mounted:

1. Install three sheet metal tank

2. Put the panel light in,make the panel light accordance with the metal tank

3. Installation of fourth pieces of sheet metal tank

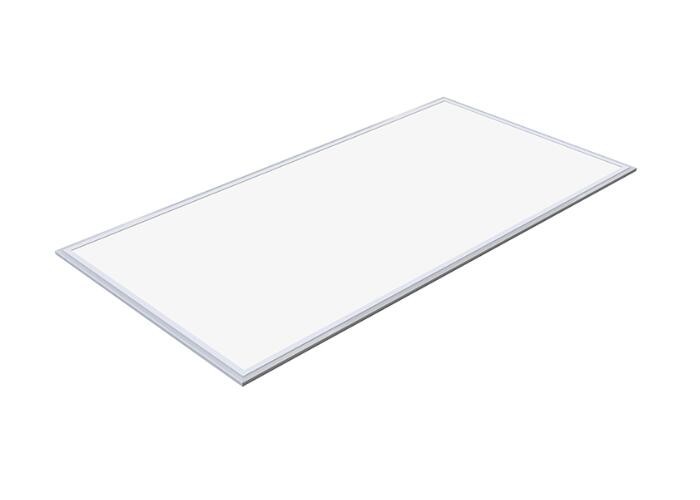

600mm Led Surface Mount Ceiling Lights 36w With 100lm / W Luminous Efficiency 0

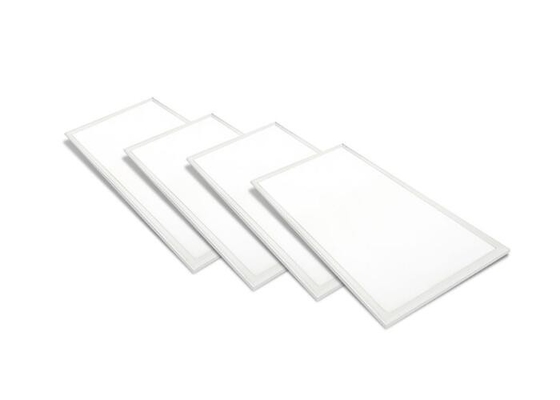

600mm Led Surface Mount Ceiling Lights 36w With 100lm / W Luminous Efficiency 1
