5w Led Energy Saving Light Bulbs Grey Aluminum Fixture Ip33 50mm Smd3030 Chip

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-SP06-5W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 100 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Diameter: 50mm Fixture Color: Grey
IP Rating: IP33 Material: Aluminum
Base: MR16 E27 GU10 Voltage: 12V 85-265V
LED Chip: SMD3030 Power: 5W
High Light:

energy saving light bulbs


led spotlight bulbs

Product Description

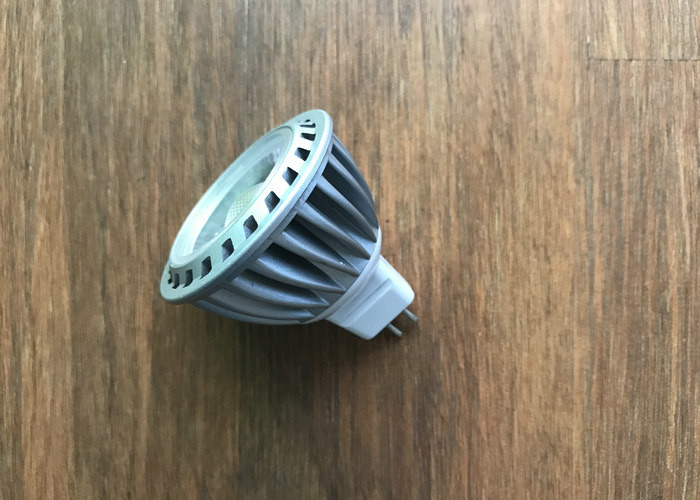

5W LED Spot Bulbs 12V 220V E27 MR16 Grey Aluminum IP33 50mm SMD3030



1. Description:


LED Spot Bulbs AD-SP06 is grey housing with aluminum fixture, the advantages of this model are:


1. SMD3030 led chip from Taiwan Epistar, 1W for one led chip with 100LM/W, high brighness with low decay, and CRI is up to 83RA.

2. Dimmable LED Driver IC constant current driver, no short circuit, safety and long life.

3. Grey housing with aluminum fixture bring good heat dissipation, low heat on the housing.

4. Beam angle is 25 degree and 45 degree.

5. We offer 2 years warranty for this led spot bulbs, no need to worry the quality.



2. Quick Details:


Item Type: LED Spot Bulbs

Place of Origin: China (Mainland)

Brand Name: ADO

Model Number: AD-SP06-5W

Install Style: Replacement

Certification: CCC, CE, LVD, RoHS

Color Temperature(CCT): Cool White

IP Rating: IP33

Lamp Body Material: Aluminum Alloy

Base Type: GU10

CRI (Ra>): 85

Input Voltage(V): 220-240

Lamp Luminous Efficiency(lm/w): 80-90LM/W

Lamp Power(W): 5W

Working Temperature(℃): -30 - 55

Base: MR16 / GU10 / E27 / E14

Voltage: 12V 220V

Power: 3W 5W 7W 9W

Warranty: 2 year

Color Option: cool white / warm white



3. Technical Data:


Model number AD-SP061-5W Input voltage DC12V AC12V
Shell material Aluminum Base MR16
Lamp Size(mm) 49*57mm LED brand Epistar
IP rating IP20 LED light source 1W
Life span(hour) 30000 hours LED Quantity 5pcs
Warranty 2 years Beam Angle 25 and 45 degree
Place of Origin China LED Type SMD3030
LED Driver IC constant current Color temperature(K) 2700K 4000K 6000K
Power 5W CRI(Ra) 80Ra


4. Application:


LED Spot Bulb is widely used in:

1. Interior display lightings such as shop displays, jewellery shop windows, restaurants, restaurants, etc.; exhibition halls, art halls, museums, offices, reading rooms, clothing stores, etc.; large-scale decorative lights; disco, bar, card, OK, etc. Lighting; jewelry, gold and silver jewelry and fashion lighting;

2. Local lighting: lighting used in corridors, toilets, garages, parking lots, security lights used in factories, residential areas, security lights, night lights, lights, night lights used in the room, and lights;



5. Features:


1. High color rendering: The color rendering index is 80 or more.

2. Good heat dissipation: LED has a unique structural design, its cooling effect is very good, in addition to the ends of the heat sink, there is also a large block of heat in the middle, this design makes the product's life increased a lot.
3. Low attenuation: Using imported high-quality materials, coupled with advanced packaging technology, the attenuation of the product can be controlled within two thousandths.
4. Long life: The product is packaged with high-quality materials, good heat dissipation effect, product life can be more than 50,000 hours.
