Dimmable Led Highbay Light 60w Ip66 145lm / W 240 Degree With 5 Years Warranty

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-UFO-E-60W
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: 1PCS/CTN
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Power: 60W Luminous Efficiency: 145LM / W
Beam Angle: 240 Degree Warranty: 5 Years
LED Driver: Dimmable IP Grade: IP66
High Light:

high bay lighting led

,

led high bay lamp

Product Description

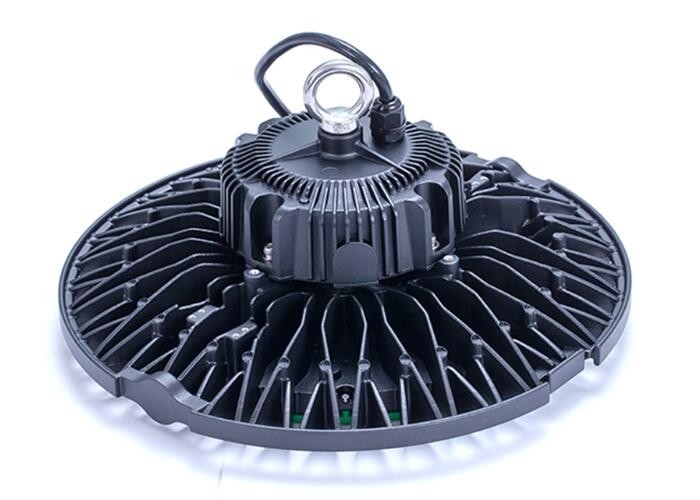

Dimmable UFO LED Highbay Light 60W IP66 145LM / W 5 Years Warranty 240 Degree



1. Description:



ADO LED Highbay Light design with robust die-casting aluminum and TIGER painting to ensure working perfectly under any circumstance. Also can be supplemented with light controls that can be controlled automatically via programs. Our led highbay light is a high efficiency and shory payback tims packaged in modern energy efficient luminaires provide huge energy savings and low service needs.





2. Specification:



Light Source: LED

Item Type: LED High Bay Lights

LED Light Source: SMD

Warranty(Years): 5

Input Voltage(V): 95-305

Lamp Power(W): 60

Lamp Luminous Flux(lm): 9600

Lamp Luminous Efficiency(lm/w): 145

CRI (Ra>): 80

Color Temperature(CCT): 4000K

Working Temperature(℃): -40 - 50

Working Lifetime(Hour): 50000

Lamp Body Material: Aluminum

IP Rating: IP65

Certification: CE, EMC, LVD, RoHS

Place of Origin: Guangdong, China (Mainland)

Brand Name: ADO

Model Number: AD-UFO-E-60W

Application: Indoor and outdoor lighting

Color: RAL 9005

Beam angle: 240 degrees

Accessory: Adapter

Size: Dia 350mm

Design: Swedish design

Dimmable: optional

Packing: 1pcs/carton

Product size: 350x165mm





3. Technical Data Sheet:



Input Power 60W
Input voltage AC90-305V
Working frequency 50-60HZ
LED Spec Osram 3030
CCT 2700-6500K
Lumens 9600LM
Certificate CE ROHS EMC SAA
PF ≥0.95
CRI ≥80Ra
Beam Angle 60, 90,120, 240 degree
Housing material Pure Aluminium
LED working life 30000-50000H
IP Rate IP65
Warranty 5 Years
LED Driver IP65 Waterproof
Size 350x165mm





4. Application:



1. Outdoor Area Lighting, High Mast Lighting.

2. Garage Lighting, Workshop Lighting.

3. Tunnel Lighting, Bridge Lighting.

4. Warehouse lighting, Factory Lighting, Industrial Lighting

5. Gas Station Lighting.





5. Advantages:



1. Using a number of high-power LED (3030) module as a light source, with a high thermal conductivity, low light attenuation, pure light color, indicating high, no ghosting and other characteristics;
2. Unique fin heat dissipation design, lighter weight, perfect combination of light source and heat sink, effective conduction of heat diffusion, thereby reducing the temperature of the lamp body, effectively guarantee the life of the light source and power supply;
3. No environmental pollution, no lead, mercury and other pollution elements, without any environmental pollution;
4. Good color rendering, more realistic representation of the physical color. Various light colors are available, which can meet the needs of different environments, eliminate the depression caused by the high or low color temperature of traditional lamps, make the visual comfort more comfortable, and improve the work efficiency of workers;





6. Trade terms:



1.Trade Term: EXW, FOB, CIF

2. MOQ: 1pcs

3. Payment: T/T, Western Union, Paypal

4. Sample Availability: Yes

5. Shipment: By Sea / Air / Express

6. Normal Lead Time: 7 days for sample order; 15 days for bulk order

7. Payment Terms: 30% before production, 70% before delivery

8. Port: Shenzhen, Guangzhou, Zhongshan

9. Discount: For big quantity





7. Why Choose Us?


1. Quality assurace: All products are our own design and we have patents, Our own brand "ADO" products available in many countries.
2. Team Strength: We have abundant experience on new products development and can be customized according to customer demand.
3. Eco-friendly: We take our responsibility to help to reduce the carbon and protect our eco system, all of the material wee use is in conformity with RoHS.
4. Best Service: We can accept client OEM, ODM request, Flexible production line for customization.
