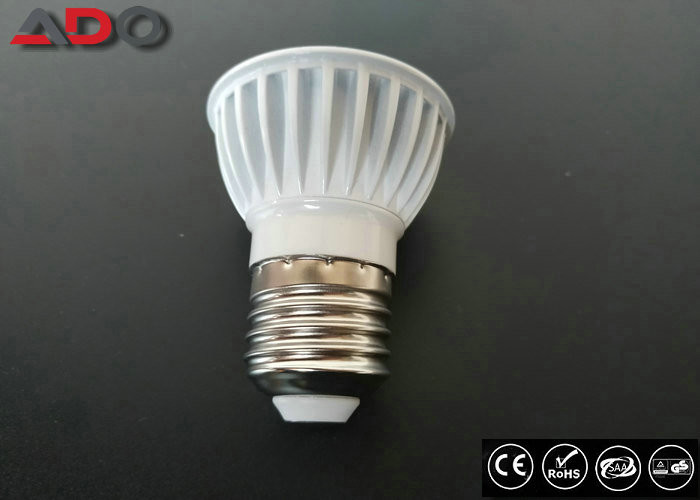

MR16 E27 LED Spot Bulb 3W 5W 7W 220V 45 Degree Beam Angle 110LM / W

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-SP05-5W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 100 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000 pcs per day
Contact Now

Detail Information

Name: LED Spot Bulb IP Level: IP20
Application: Indoor Fixture Color: White
Material: Aluminum CCT: 3000K 4000K 6500K
High Light:

energy saving light bulbs


spotlight light bulbs

Product Description


3w 5w 7w MR16 GU10 E27 LED Spot Bulbs white housing 220V 12V 3000K 4000K



1. 5W MR16 and GU10 LED Spot Bulb Specification:


Model number AD-SP05-5W AD-SP05-5W
Power 5W 5W
Lumen 450LM 450LM
Input voltage AC220-240V AC/DC12V
Base GU10 MR16
LED brand Epistar Epistar
LED light source 1W 1W
LED Quantity 5pcs 5pcs
Beam Angle 45 degree 45 degree
LED Type SMD3030 SMD3030
LED Lumen 110LM/W 110LM/W
Color temperature(K) 2700K 4000K 6000K 2700K 4000K 6000K
CRI(Ra) 80Ra 80Ra
Shell material Aluminum Aluminum
Lamp Size(mm) 50*53mm 50*57mm
IP rating IP20 IP20
Life span(hour) 30000 hours 30000 hours
Warranty 2 years 2 years
Place of Origin China China
LED Driver IC constant current IC constant current
Dimmable Yes Yes
Certificate CE RoHS CE RoHS


2. 3W, 5W, 7W LED Spot Bulb Specification:


Model AD-SP05-3W AD-SP05-5W AD-SP05-7W
Power 3W 5W 7W
Base GU10    E27    MR16
Voltage AC 85-265V      DC / AC12V
LED Chip SMD3030 SMD3030 SMD3030
LED Quantity 3pcs 5pcs 7pcs
CCT WW: 2700-3000K  NW: 4000-4500K  CW: 6000-6500K
LED Power 3*1W 5*1w 7*1w
Lumen 240-270LM 400-450LM 560-630LM
Size Φ49*57mm Φ49*57mm Φ49*75mm
Beam Angle 25° 45°



3. Features:


Voltage AC220V, AC110V, AC85-265V, DC12V, AC12V
Power 3W, 4W, 5W, 7W
Color temperature 2700-3000K, 4000-4500K, 6000-6500K
LED Type COB 1W, 3W, 5W and 7W, SMD5050, SMD2835 and SMD3030
CRI 80Ra or 90Ra
Dimmable Dimmable and non dimmable version are optional
Beam Angle 30 degree, 38 degree, 45 degree, 60 degree, 120 degree
Housing color white, black, grey, sliver
Base GU10, MR16, E27, GU5.3
Material Aluminum, Ceramic, PC.
Packing Neutral white box, Neutral color box, Customize box.
Warranty 2 Year warranty and 3 years warranty



4.  Application:


LED Spot Bulb is widely used in:

1. Interior display lightings such as shop displays, jewellery shop windows, restaurants, restaurants, etc.; exhibition halls, art halls, museums, offices, reading rooms, clothing stores, etc.; large-scale decorative lights; disco, bar, card, OK, etc. Lighting; jewelry, gold and silver jewelry and fashion lighting;

2. Local lighting: lighting used in corridors, toilets, garages, parking lots, security lights used in factories, residential areas, security lights, night lights, lights, night lights used in the room, and lights;

3. Decorative lighting: suitable for construction, home decoration, window, counter lamp and other decorations.



5. FAQ:


1. Can i have dimmable led spot light?

Yes, we offer dimmable led spotlight bulbs, and it is triac dimmable.


2. Can i have GU5.3 base?

Yes, GU5.3 voltage is AC220V, please don't use it on DC12V voltage.


3. What's the material of the led spot light bulbs?

Our led spotlight bulbs material is aluminum, it is good for heat dissipation, also we can make PC housing.


4. Do you provide RGB LED Spot Light?

Of course we can provide RGB spot bulbs, also it is with the RGB controller, can change many many different colors by using the controller.


5. Can i have dimmable led spot light with voltage AC85-265V?

I am sorry no, if dimmable, the driver voltage is AC220-240V or AC100-130V. If non dimmable, the driver can be wide voltage AC85-265V.



6. Why Choose Ado LED Spot Bulbs?


1. Market new and special design products

2. Good quality material to assemble the led spot bulbs.

3. Instrict QC department to inspect and test all the products before shipping

4. 48 hours products aging test with on and off.

5. Professional workers to produce led spot bulbs without mistakes.

6. Good after-sales services to follow up your orders

7. Friendly international salesman to solve all of your problems
