China LED Flat Panel Light manufacturer

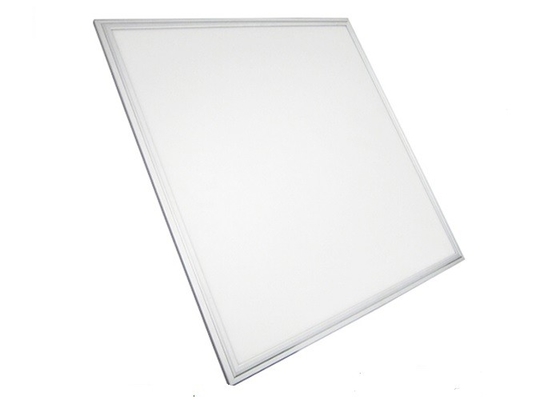

600mm Square Led Surface Panel Light , 36w Sliver Aluminum White Ceiling Lights

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: CE ROHS FCC 3C
Model Number: AD-PAL66-36W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 5 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Voltage: AC85-265V Lumen: 2880LM
Power: 36w Material: Aluminum
Fixture Color: Sliver CRI: 80Ra
High Light:

led ceiling panels


led flat panel

Product Description


LED Flat Panel Light 36W 600mm Sliver Aluminum 2880LM Waterproof Driver



1. Description:


Ado LED Flat Panel Light have many sizes, 300*300mm, 300*600mm, 300*1200mm, 600*600mm, and 600*1200mm. Also there are 3 installation, recesssed mounted, surface mounted and suspended. Color temperature could be 3000K, 4000K and 6000K, also could be customized dimmable if you need. The fixture color could be sliver and white.



2. Features:


A. Good color rendering, soft light, uniform light spot, and pure light color.

B. High-power transformer, perfect combination of lamps, electrical appliances and light sources

C. streamlined design, lightweight and simple, beautiful, easy to install and replace

D. Wide voltage constant current circuit, dustproof, leakproof, no flicker, stable and reliable performance.

E. High color rendering index, the most intuitive, clearest, and adjustable color temperature

F. Dustproof, insectproof, and not easily deformed.

G. Constant current driving power supply, the conversion efficiency is more than 95%, low power consumption, so that the light efficiency of the lamps is higher.



3. Application:


1. Office

2. Supermarket

3. Hospital

4. Meeting Room

5. Hotel


4. Specification:


Model: AD-PAL6*6-36W
Watt: 36W
Input Voltage:AC85V-265V
Beam angle:120°
CCT: 2800-6500K
Lumen: 2880Lm
LED Brand: Taiwan Epistar
LED Type: SMD2835*180pcs
Life Span:30000 hours
Warranty: 3 years
Lumen effciency:100LM/W
Package:netural color box

IP Grade: IP44


Fixture color: sliver / white

Working Temperature(℃): -20 - +40

Ambient Temperature: less than 60°C

LED Driver: Waterproof wide voltage IC isolated constant current

PFC: 0.9

5. Size & Power:


Model Size
AD-PAL3*3-12W 300mm*300*8mm
AD-PAL3*3-18W 300mm*300*8mm
AD-PAL3*6-24W 300mm*600*11mm
AD-PAL3*6-30W 300mm*600*11mm
AD-PAL3*12-36W 300mm*1200*11mm
AD-PAL3*12-48W 300mm*1200*11mm
AD-PAL6*6-36W 600mm*600*11mm
AD-PAL6*6-48W 600mm*600*11mm
AD-PAL6*12-72W 600mm*1200*11mm



6. Packaging:

5PCS/CTN, Carton Size: 68*26*73cm, G.W.: 18.5KG/CTN
20" Standard Container: 1300pcs
40" Standard Container: 2600pcs



7. Maintenance:

1. After buying the flat led panel light, don't try to install them first. Please read the installation instructions carefully. Then install the lamps according to the installation instructions. Otherwise, danger may occur.

2. Do not change the structure of the lamp during cleaning and maintenance, and do not change the parts of the lamp at will. After the maintenance, the lamp should be installed as it is. Do not miss or replace the parts of the lamp.

3. When using LED lighting, try not to switch frequently, although the number of LED lighting switch resistance is about 18 times that of ordinary fluorescent lamps, but too frequent will still affect the LED lamp internal electronic device

4. The installation position of LED panel light products should be away from high temperature objects and easy ignition points.

5. Before the LED panel lights clean and hygienic, need to cut off the power to ensure absolute safety.

6. Please use a dry or relatively dry cloth to clean, do not use non-manufacturers to provide chemical or corrosive things to clean the surface of the panel light.

7. When leaving the office or room, please remember to cut off the power readily to maintain the service life of the panel light.
