Linkable Glass T8 Led Tube Light Fixtures 2ft 4ft 6000k With Good Versatility

Product Details:
Place of Origin: China
Brand Name: ADO
Certification: CE ROHS
Model Number: AD-T8-900-15W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 20 Pieces One Carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 5,000 pcs per day
Contact Now

Detail Information

Voltage: AC120V LED Chip: 2835LED
CCT: 6000K Length: 2ft 4ft
Type: T8 LED Tube Driver: Dimmable
Certificate: UL Material: Glass
High Light:

led ceiling tube lights


led tube light

Product Description


LED Tube Light T8 2ft 4ft Dimmable AC120V Linkable 6000K 2835LED 0.9PFC UL Glass



1. Description:


The LED Tube is very simple to install. When installing, replace the original fluorescent lamp with the LED tube, remove the ballast and the starter, and let the 220V AC power supply be directly applied to the two ends of the LED lamp.
LED Tube energy saving up to 70%, life is more than 10 times the ordinary lamp (in theory it can reach more than 50,000 hours), almost maintenance-free, there is no need to constantly change the lamp, ballast, starter. The problem is that about half the cost savings can be exchanged back. The green-friendly semiconductor electric light source has soft light and pure colors, which is beneficial to people's vision protection and health.




2. Advantages:


1. Green: meets European Rohs directives, and does not have the disadvantages of mercury and ultraviolet light pollution of traditional fluorescent lamps. The constant DC current drives the LED to emit light, which is pure and soft.
2. Durable: The purely heat-conductive glass tube never deteriorates yellowing, and its luminous maintenance rate is high.
3. Versatility: Wide voltage (AC85-265V) power supply design, stable operation even if the voltage fluctuates greatly. Applicable to global mains voltage.
4. Professional and beautiful: professional lighting design masters to create, more understanding of market demand super high cost: there is a strong application of alternative and cost-effective, in the peer more competitive advantage.



3. T8 LED Tube Technical Data Sheet:


Model number AD-T8-300mm-5W AD-T8-600mm-10W
Power 5W 10W
Input voltage AC85-265V
LED brand Epistar
LED light source SMD2835
LED Quantity 24pcs 48pcs
Luminous efficiency 100LM / W
Total Lu men 500LM 1000LM
Color temperature(K) 3000K / 4000K / 6500K
CRI(Ra) 80 RA
LED Driver Internal IC constant current non-isolated
Power factor >0.9
Shell material Aluminum+PC
Cover color Milky / clear
Lamp Size(mm) L300*Φ16 L600*Φ16
IP rating IP44
Life span(hour) 30000 hours
Warranty 2 years warranty
Place of Origin China Guangzhou city


4. Applications:


Lights equipped with energy-saving self-extinguishing switches in stairwells and walkways of residential buildings or similar facilities are almost all replaced with incandescent lamps, and LED Tube are most suitable for replacement. Energy-saving effects are good, and economic benefits are also significant.



5. Precautions:

1. Installation: LED comes with constant current source, no ballast, starter.
2. Voltage: AC 85V--AC 245V, all can work normally.
3. Heat dissipation: Prevent dust from covering the heat sink and affect heat dissipation.
4. Waterproof: LED fluorescent lamp because the lamp is composed of two parts: there is a gap in the connection, it is recommended to add a protective cover.
5. Vibration: LED fluorescent lamp has a strong anti-vibration ability. As long as it is not a violent impact, it will not cause damage.

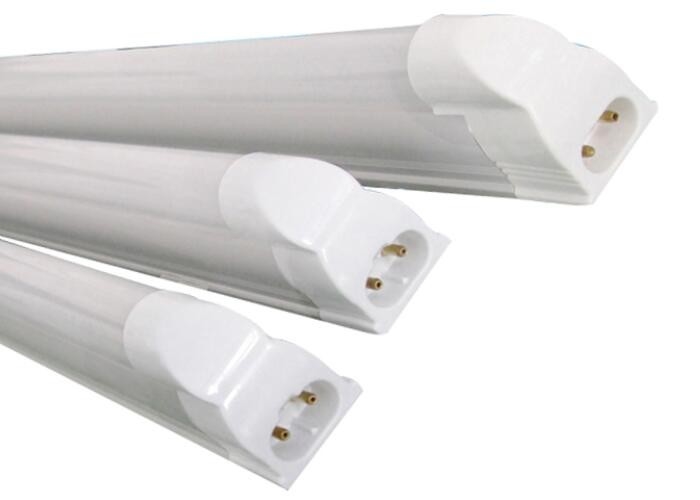

Linkable Glass T8 Led Tube Light Fixtures 2ft 4ft 6000k With Good Versatility 0

Linkable Glass T8 Led Tube Light Fixtures 2ft 4ft 6000k With Good Versatility 1
