China LED Flat Panel Light manufacturer

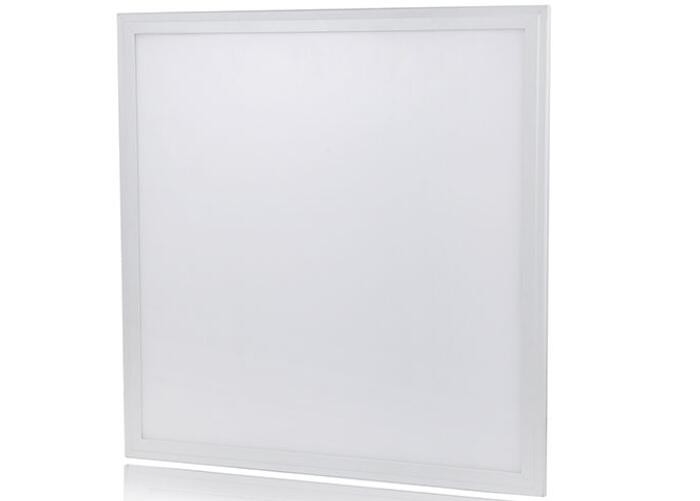

Suspended Ip65 Led Panel Light 24w 60cm Sliver 2400lm For Kitchen / Office

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: CE ROHS TUV UL SAA
Model Number: AD-PAL36-24W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 5 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Power: 24W Waterproof: Yes
Size: 60cm Housing Color: 24W
Installation: Suspended IP Grade: IP65
High Light:

led ceiling panels


flat led ceiling light

Product Description

24W Suspended Flat LED Panel Light IP65 Waterproof 60cm Sliver 2400LM

1. Technical Data Sheet:


Wattage 24W Warranty 3 years
Model AD-PAL36-24W CCT 6000K
Voltage AC85-265V IP Ranking IP65
Dimension 300*600mm Material Aluminum
Luminous Efficiency 100lm/W LGP PMMA 3mm
CRI ≧80Ra Beam Angle 120 degree
PF ≥0.9 Installation Recessed
LED Brand Epistar Dimmable No
LED SMD2835 Fixture color Sliver
Driver Isolated IC Constant Current LifeSpan 30,000 hours



2. More Options:


Model Size
AD-PAL33-12W 300*300mm*11mm
AD-PAL33-18W 300*300mm*11mm
AD-PAL36-18W 300*600mm*11mm
AD-PAL36-24W 300*600mm*11mm
AD-PAL66-36W 600*600mm*11mm
AD-PAL66-48W 600*600mm*11mm
AD-PAL312-48W 300*1200mm*11mm



3. Description:


Ado Flat LED Panel Light is one of our best selling products, it has passed many certificates, such as CE, RoHS, EMC. Our flat led panel light was assemble by some important material, they are alloy base plate, refective sheet, lighting guide plate, diffuser plate, led chip and isolated driver. Every material is very important to the quality, the following are the details of each material part:


1. Alloy base plate: Strong alloy board, good sealing and dustproof
2. Reflective sheet: 98% glisten rate, high lighting integrity
3. Lighting Guide Plate: Adopting Japanese Mitsubishi guide plate, aacurate laser doting, lighting

4. more uniformity, no dark zone, high light transmittance
5. Diffuser plate: Aluinum alloy frame, refined sliver aluminum alloy frame, sturdy and durable,

professional oxidation treatment, drawing craft, an-ti corrosion, Rust-proof.
6. LED Chip: SMD2835, high brighness, low decay, side-emitting no leakage. 90-100LM/W
7. Isolated driver: high quality, waterproof aluminum box, stable quality



4. Features:


1. Waterproof IP65 could be used for outdoor lighting

2. Luminous efficiency is up to 100LM/W

3. Color temperature could be 3000K, 4000K, 6000K and RGB.

4. CRI could be 90Ra

5. Color changing could be 3000k to 4000K, and 4000k to 6000K.

6. Dimmable to change from bright to dark

7. 3 years warranty for quality ensurance



5. Advantages:


1. Adopt external IC constant-current isolation waterproof led driver, long lifetime and high efficiency.

2. Recessed, surface mounted and suspended installation are available.

3. Adopt Epistar SMD4014 LED chips, low light decay, high brightness; Using solid state and free maintenance LED source, fast start and long life span.

4. The radiator use special slim design and process, ensure the best heat sink cooling.

5. Panel light is easy to Installation, high light intensity, beam far distant, uniform light

6. World wide using input voltage AC85-265V,50-60Hz.

7. Green enviromental and energy saving



6. Why Choose Ado Lighting:

1. High and Steady Quality

2.Very Favorable and Attractive Price

3. Small Quantity allowed (Trial Order Also Welcomed)
4. Good after-sales Service

5. 3 years warranty with free replacement

6. 100% New Products
7. Large Stocks (Stable Supply Ability)
8. All kinds of car accessory for your choice
9. Fast Delivery
