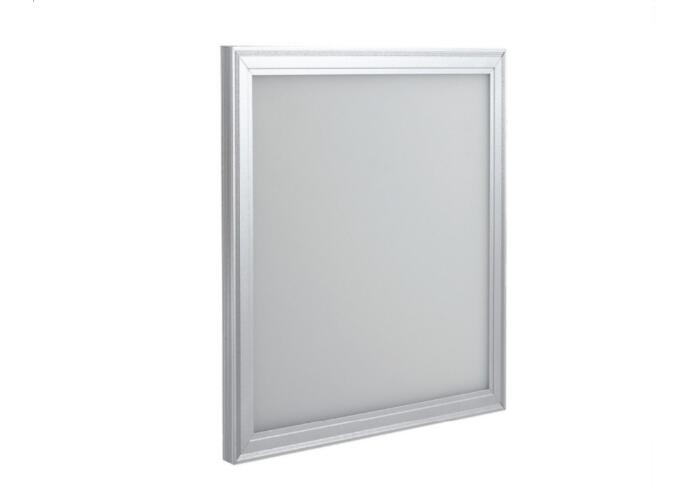

Rgb Suspended Ceiling Led Panel Light Aluminum 2ft With Dlc Certificate

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: CE ROHS TUV UL
Model Number: AD-PAL66-40W
Payment & Shipping Terms:
Minimum Order Quantity: One Carton
Price: Negotiation
Packaging Details: 5 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Power: 40W Color Temperature: RGB
CRI: 90Ra Lumen: 100LM / W
Certificate: DLC Installation: Hanging
High Light:

led ceiling panels


led flat panel

Product Description

LED Flat Panel Light 40w 2FT RGB Hanging 90Ra Aluminum DLC 110LM / W



1. Technical Data Sheet:


Wattage 40w
Model AD-PAL66-40W
Voltage AC85-265V
Dimension 600*600mm
Luminous Efficiency 100lm/W
CRI ≧80Ra
PF ≥0.9
Driver Isolated IC Constant Current
Warranty 3 years
IP Ranking IP40
Material Aluminum
Beam Angle 120 degree



2. RGB LED Flat Panel Light Description:


RGB LED Flat Panel Light is adopt RGB led chips to realize the RGB lighting effect, it is the same as RGB led strips, which need a RGB dimmer to control the color changing. RGB LED Flat panel light is widely used for decoration lighting and entertainment venue, such as KTV, Brithday Party, Bars, and Christmas decoration. The most advantage is the different colors can be constantly changing. It supports various light colors such as red, green, blue, purple and orange, and a variety of light color conversion modes. Supports white light illumination mode.



3. Advantages:


1. Leading power supply design, long service life

2. No mercury, lead-free and other harmful substances harmful to the environment

3. Energy saving, environmental protection, high brightness, save about 65% of the power compared to the traditional grille lamp

4. Instant start, no Glare, no beeps, no flicker

5. No radio interference

6. No UV, no infrared, no thermal effect



4. Features:
A. Many Sizes: 300*300mm, 600*600mm, 300*600mm, 300*1200mm, 600*1200mm
B. Different Power: 12W, 18W, 24W, 36W, 40W, 48W, 60W, 72W
C. Optional Color Temperature: 3000K, 4000K, 6000K, RGB
D. Dimmable and non dimmable is available
E. Fixture color: Sliver and White
F. LED Chips could be SMD2835 or SMD4014
G. LED Drivers could be CE drivers, normal drivers, Lifud drivers, meanwell drivers
H. CRI could be 80Ra, 90Ra based on your needs.
5. Electronic Parameter:
Product model Watt. Input Volt. PF Conversion efficiency Actual power consumption
PAL66-40W 40W AC100-277V,60Hz >0.9 >86% 40W±10%

6. Packing Information:


Inner Box Size: 66.5*64*4.5cm

Product Net Weight: 3.6kg

Packing Size: 68.5*65.5*24.5cm
Packing Quantity: 5pcs
Packing Gross Weight: 18.5kg
7. Shipping:
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days.
2. Air Freight: when your order more than 100kgs which will be more economical than express.
3. Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
4. Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
8. Installation:

Embedded(Recessed) Installation:
a. Move away ceiling plaster slab, then arrage the wire
b. put through the panel light along ceiling's diagonal and then wiring.
c. fix the panel light to suitable place


Hanginng installation:
a. install the hanging fixed block in order.
b. set up hanging fittings and stainless steel rope
c. fix the rope on suitable height by using lifter


Ceiling Installation:
a. fix the upper frame
b. install connection fittings
c. laterally connect panel light to upper frame by screws



Rgb Suspended Ceiling Led Panel Light Aluminum 2ft With Dlc Certificate 0

Rgb Suspended Ceiling Led Panel Light Aluminum 2ft With Dlc Certificate 1

Rgb Suspended Ceiling Led Panel Light Aluminum 2ft With Dlc Certificate 2
