China LED Flat Panel Light manufacturer

Embedded Mounted Led Flat Panel Light No Flilker With 120 Degree Beam Angle

Product Details:
Place of Origin: China(mainland)
Brand Name: ADO
Certification: CE ROHS TUV UL
Model Number: AD-PAL66-36W
Payment & Shipping Terms:
Minimum Order Quantity: One Piece
Price: Negotiation
Packaging Details: 5 pieces in one carton
Delivery Time: 5 - 8 work days
Payment Terms: PayPal, Western Union, T/T, L/C
Contact Now

Detail Information

Installation: Embedded Mounted UGR: <19
Lumen: 3600LM Flicker: No
Power: 36W Beam Angle: 120 Degree
High Light:

led ceiling panels


flat led ceiling light

Product Description

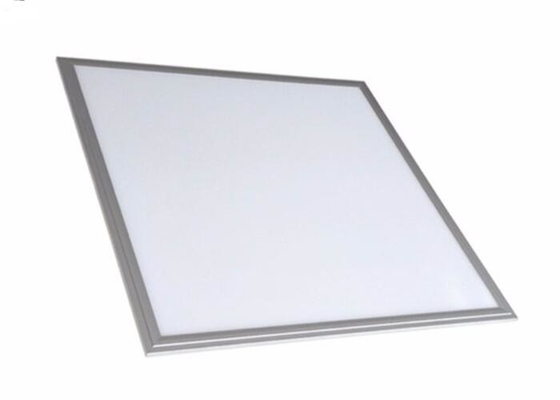

Flat LED Panel Light 36W Embedded Mounted UGR<19 3600LM No Flilker 120Degree



1. Description:


Ado Led Flat Panel Light fixture color is aluminum material, it is high thermal conductivity, fast cooling, better heat dissipation, it can solve the heat problem, to ensure the led chips service life. And the aluminum frame is anodic oxidation with surface blasting effect processing, make the design more beautiful, fashion.

The frame color also can make white color and black color. The slim and flat design occupies less space, and very easy to install and replace.



2. Specification:


Model Item: AD-PAL66-36W

Material: Aluminum+PMMA

Certification: CE, RoHS, UL, SAA, CUL, CCC, SASO, VDE

Beam Angle: 120 degree

Working Temperature: :-20~+40 Degree

Power Support: AC85-265

Size: 595*595mm

Driver: Water Proof Model

LED Type: 2835

LED Quantity: 180pcs

Luminous Flux: 3600lm

CRI(Ra): >85

Power Factor: >0.9

Transport Package: Color Box Import Starndard Carton



3. Features:

1. Flashing free by the camera. Non-flickering.
2. Less than 0.05% defective rate in last 3 years.

3. Conforms to CE certificate and safety standard.

4. All the materials are good brand.

5. No electromagnetic interference.

6. Easy to install, can replace the same ceiling or grille light hanging on the wall, or hanging on the roof through the chain

7. In the case of unstable voltage, constant current drive can still guarantee the normal operation of the panel light



4. Advantages:


1. Different lumen efficiency: 140LM/W 120LM/W 100LM/W 80M/W is available

2. CRI>80 CRI>90 is available

3. Non-dimmable, DALI, 0-10V, Traic, WIFI, 2.4G, CCT Dimmable are available.
4. Non waterproof IP20 and IP65 waterproof is available

5. UGR<19 SDCM<6 is available



5. Storage and working temperature:


Working temperature -20°~+40°
Storage temperature Room temperature



6. Packing:


Packing Size 68.5*65.5*24.5cm
Packing Quantity 5pcs
Packing Gross Weight 18.5kg



7. Our service:


Quick answer: We will reply your questions immediatelly, If we can't answer and solve your problems at once, we will explain the current situation clearly and provide the exact date of solution.

Always report: Customers will be keep informed on every progress of their order’s production, knowing order's condition with time on schedule

Delivery notification: Offer detailed shipping date, loading date, bill number and ETA after delivery, and remind customers when the goods are going to arrive the port or destination.

Installation services: Professional engineers will provide and help you for the installation steps.



8. FAQ:


Q1. Do you have MOQ Limited:

A1. MOQ is only 1pcs.

Q2. Could you make triac dimmable?

A2. Yes, only change the normal driver to triac dimmable driver.


Q2: What's the warranty?

A2: Warranty is 3 years for Europe products, 5 years for North America products.


Q4: How do you pack the panel lights?

A4: One product has one inner box with foam, 5pcs in one carton. If by express or air, we will use wooden frame to pack the goods to prevent the transportation damage.


Q5. May i have white color for the fixture?

A5. Yes, white color fixture need to be customized.


Embedded Mounted Led Flat Panel Light No Flilker With 120 Degree Beam Angle 0

Embedded Mounted Led Flat Panel Light No Flilker With 120 Degree Beam Angle 1

Embedded Mounted Led Flat Panel Light No Flilker With 120 Degree Beam Angle 2
