Product Details:
|
|
| Place of Origin: | China(mainland) |
|---|---|
| Brand Name: | ADO |
| Certification: | CE ROHS TUV UL SAA |
| Model Number: | AD-PAL612-C-80W |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | One Carton |
| Price: | Negotiation |
| Packaging Details: | 5 pieces in one carton 126*21*64CM |
| Delivery Time: | 5 - 8 work days |
| Payment Terms: | PayPal, Western Union, T/T, L/C |
|
Detail Information |
|||
| Type: | Grille Design | LED Driver: | Lifud/Philips |
|---|---|---|---|
| LED Chip: | Osram 1W SMD2835/3030 | Installation: | Recessed/surface/suspended Mounted |
| Size: | 595x1195x25mm | Lumen: | 120LM/W |
| Beam Angle: | 36° | CRI: | 80Ra |
Product Description
1. The advantages than other led panel light are:
1. Innovative patent product, Light is even, no dark area
2. Compared with flat panel, backlit is more competitive, 20-30% cheaper than side light
3. Compared with 3.0cm backlit, the volume and transportation cost is reduced by one third
4. No LGP, No yellowing for three to five years
5. Chip: Imported Osram high lumen copper 2835 chip, 110LM-120LM/W
7. Lifud LED driver with 5 years warranty
8. Tri-color changing can be customized
9. UGR<16, / UGR<22
10. Beam Angle: 36°+120°
2. Anti Glare flat panel led ceiling light technical Data Sheet:
| Photometric and Electrical Data | Materials and Physical Characteristics | ||
| Model | AD-PAL612-C-80W | Body and frame | Metal |
| Power | 80W | Diffuser | PC |
| Input Volage | 220-240Vac | Lens | PC |
| Luminous Flux | 8000LM | Product Size | 595x1195x25mm |
| Luminous Efficiency | 110lm/W | IP Grade | 20 |
| LED Type | SMD2835 | Working Temperature | -20°C ~ +40°C |
| LED chip quantity | 120 | Certificates | CE |
| Color Temperature | 3000K/4000K/6500K | Lifetime | 50,000 hrs |
| CRI (Ra) | > 80 | Installation | Recessed |
| SDCM | < 6 | Warranty | 5 Years |
| Beam Angle | 36° | Package | |
| R9 Value | >0 | Ctn length-cm | 126cm |
| Current(mA) | 1000mA | Ctn width-cm | 21cm |
| UGR | ≤22 | Ctn height-cm | 64cm |
| Frequency | 50/60Hz | Pcs/ctn | 5PCS |
| PF | > 0.9 | G.W./ctn-kgs | 24KG |
| Driver | Isolated | Delivery Time | |
| Flicker | Non-Flicker | Small order | 5-10 days |
| Protection Class | Class II | Bulk order | 10-25 days |
3. Features:
4. Other Models:
| Model | Size(mm) | Lumen |
| AD-PAL66-A-48W | 595*595/603*603 | 110LM/W |
| AD-PAL66-B-48W | 595*595/603*603 | 120LM/W |
| AD-PAL66-C-48W | 595*595/603*603 | 120LM/W |
| AD-PAL312-B-48W | 295*1195 | 110LM/W |
| AD-PAL312-C-48W | 295*1195 | 110LM/W |
| AD-PAL612-B-96W | 595*1195/603*1213 | 110LM/W |
| AD-PAL612-C-96W | 595*1195/603*1213 | 110LM/W |
5. Details:
6. Installation:
7. Application:

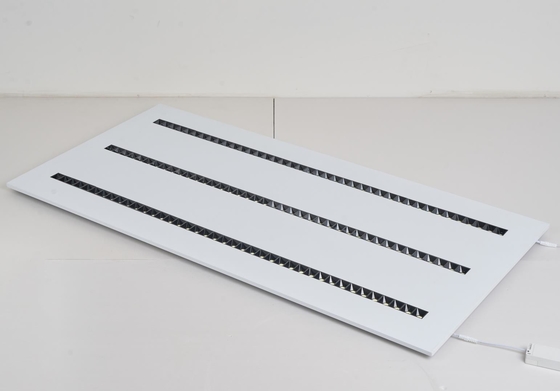

8. Real picrureof 2x4 led ceiling light panel Anti Glare Grille Flat light panel UGR16 80W 2700K non flicker dimmable:
